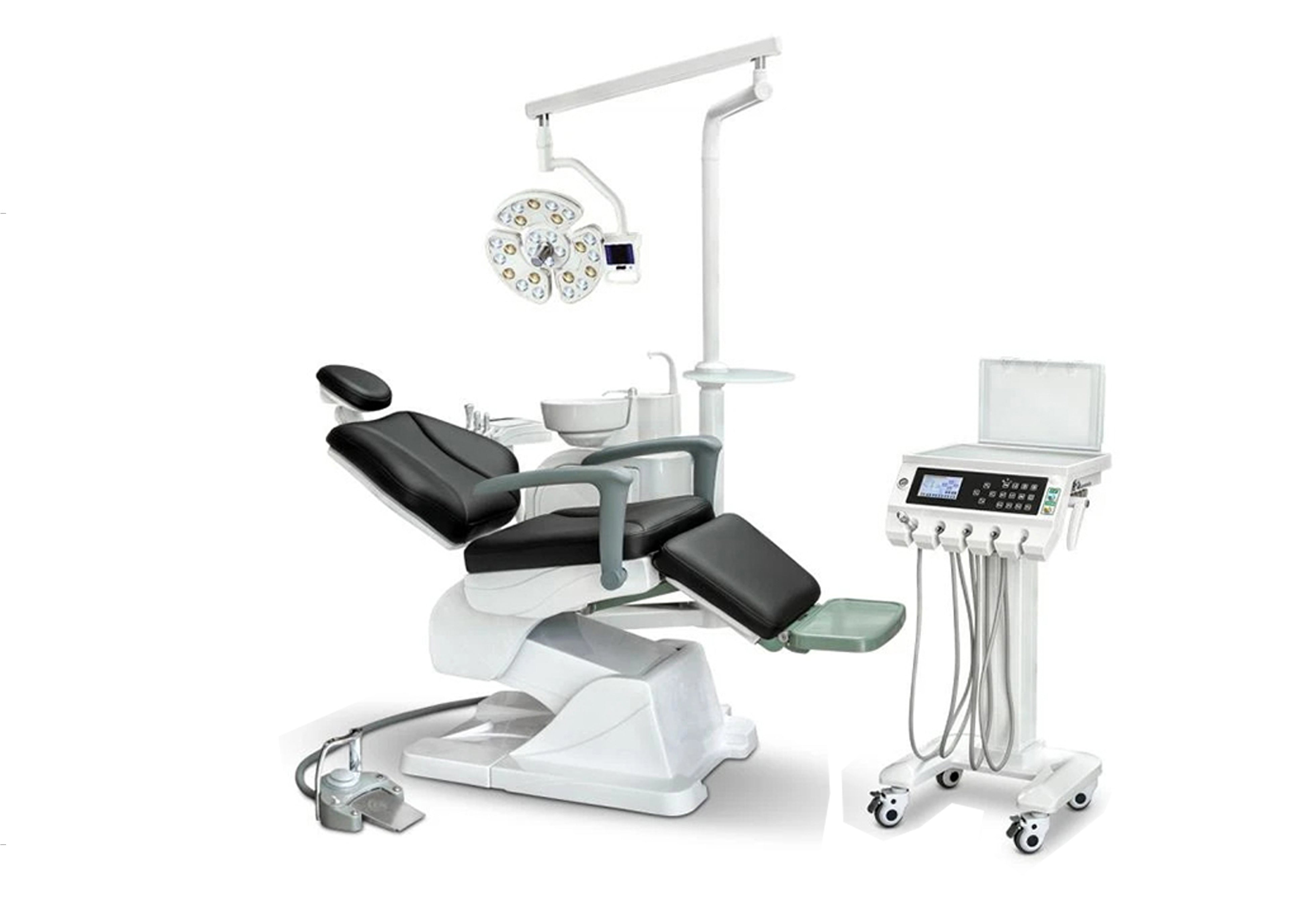

Dental Chair L-A3000 Cart

dental unit

standard configuration:

1. Hygienic design to prevent cross infection
2. The rotatable assistant frame is convenient for "four-hand" operation
3. With compensation chair frame, the chair frame adopts electrophoresis process surface treatment, with nine groups of memory functions with interlocking function
4. 2 three-purpose guns
5. Control system: USB interface integrated computer control operating system, computer control panel including reset, chair lift, pitch, cold light, spittoon, water supply, heating and other function operation keys, touch switch control panel
6. Instrument tray: large injection tool tray
7. The spittoon is made of American goods and imported from Italy with solenoid valves, a set of quantitative automatic water supply control system for mouthwash, equipped with automatic heating constant temperature system
8. A set of strong and weak saliva suction systems each, and an external dirt collection cup can be easily removed and washed
9. A set of adjustable luxury LED Anya oral cold light

10.24V low voltage control mouthwash device and one set of low voltage film viewing lamp

11. 1 set of 90 degree rotatable ceramic spittoon
12. A set of built-in mobile phone water purification system
13. 1 set of pneumatic locking instrument arm
14. Multifunctional combined foot switch, which can control mobile phones and dental chair
15. The power system adopts DC silent motor
16. It has the function of cleaning the filter screen and has the function of filtering the sediment
17. The structure of the dental chair is a computer linkage type, the headrest can be folded and adjusted and pinned at will, two-stage headrest, suitable for adults and children, with environmentally friendly microfiber leather, more comfortable, the dental chair is double armrest
18. The water vapor pipeline is imported from the United States
19. The case can be rotated, which is convenient for four-hand operation, and the case has a tissue box
20. Technical parameters:
21. Environment 5-40, relative humidity ≤80%
22. Power supply: AC 220V 50HZ
23. Air source air pressure: 0.5MPa—0.8 MPa, the flow rate is less than 50L/min
24. Water pressure of water source: 0.2MPa—0.4MPa, flow rate less than 10L/min
25. Input power: 1200VA
26. Fusible wire model: RF1—20, specification: 5x20 6A
27. Oral cold light bulb: a.c. 24V/7VA; dental light: the light spot is at a distance of 800mm from the lamp surface, the illumination adjustment range is 8000Lux～26000Lux, the temperature rise of the lighting area is ≤5℃, and the rotation range of the dental light is ≥120
28. Film viewing light: Illumination ≥ 6000 Lux
29. Water heater: DC24V/80VA
30. DC motor: d.c.24V/80VA
31. Backrest tilt angle range: 120mm
32. The maximum angle of the back tilt of the seat cushion: ≥10°
33. The dental chair can withstand 135kg
34. The noise of the whole machine is less than or equal to 70db (A) (except for the air compressor)
35. The lowest seat position ≦ 380mm, the highest seat position ≧ 720mm
36. The armrest can withstand a vertical downward pressure of 335N and a horizontal pull of 220N
37. Instrument plate: the vertical movement range should be ≥350mm, and the deflection of the plate surface should be ≤3°
