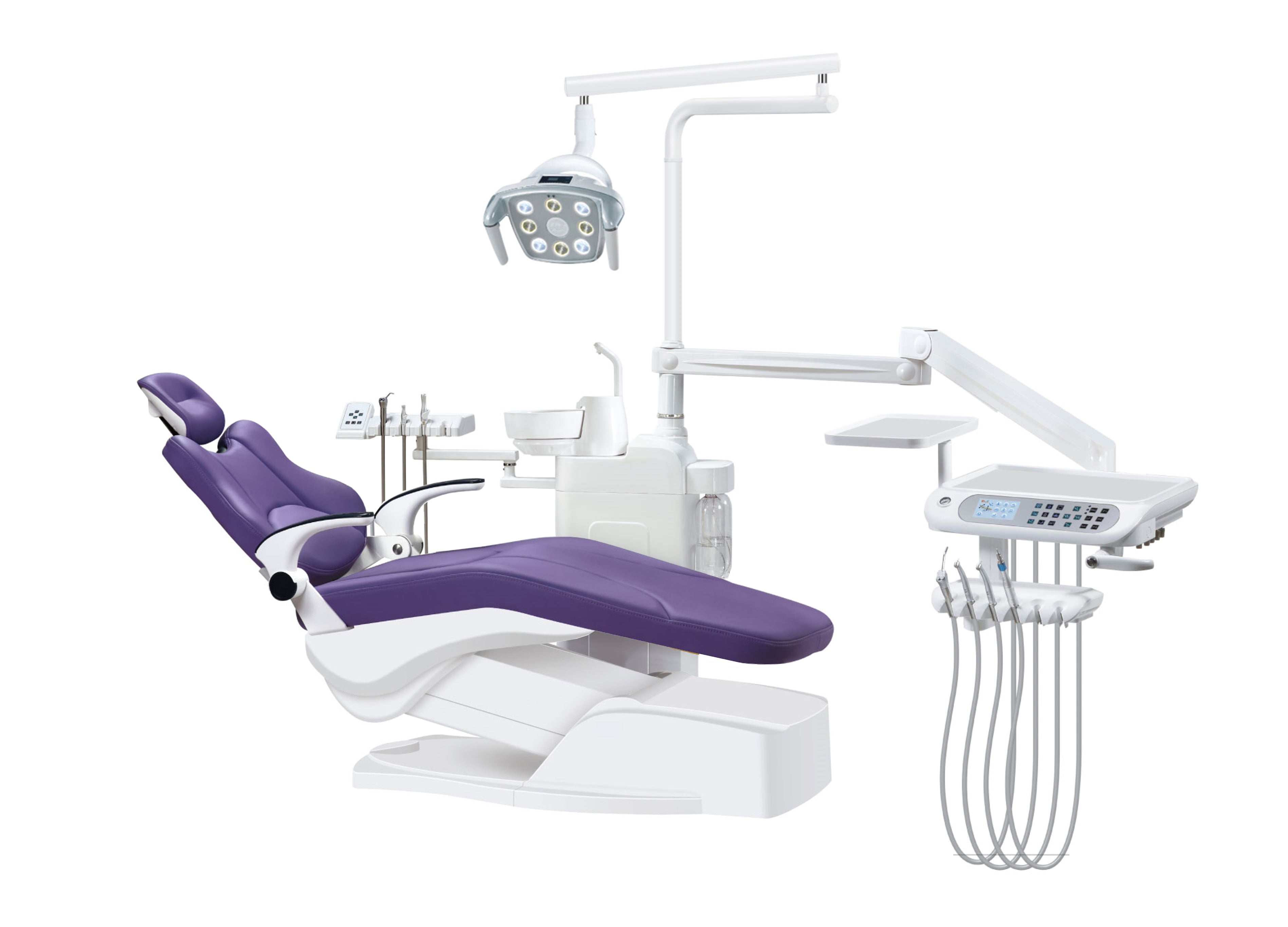

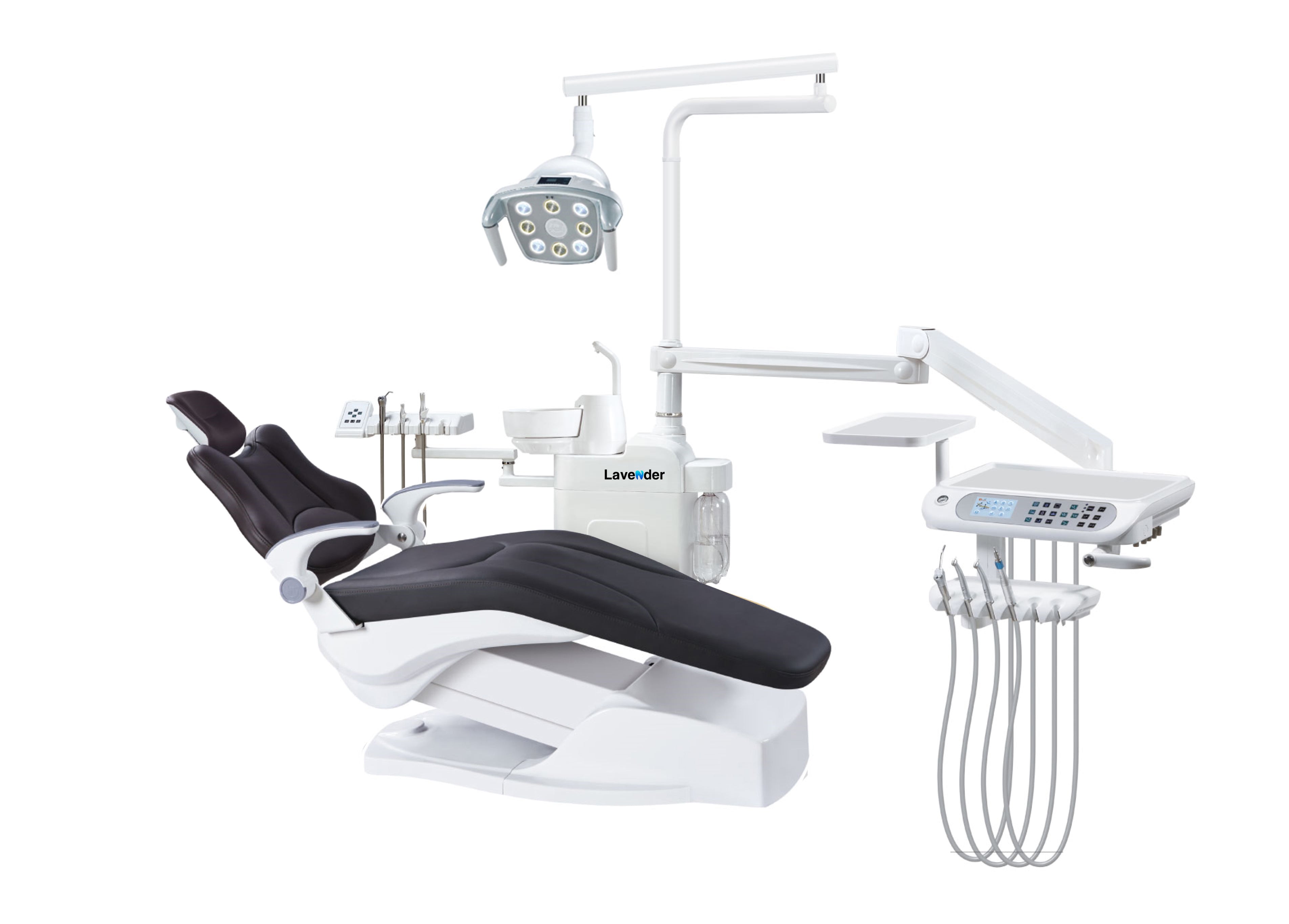

Dental Chair L-A3000 FLOOR

Dental unit

Machine configuration:

1. Control system: the chair position can be lifted, tilted, cold light, flushing spittoon, water supply, heating and has 9 groups of memory operation keys. When the patient needs to spit, directly press the LP key, and the machine can automatically travel to the spit position ; When the spitting is finished, press the LP key and the machine will automatically return to the treatment position.

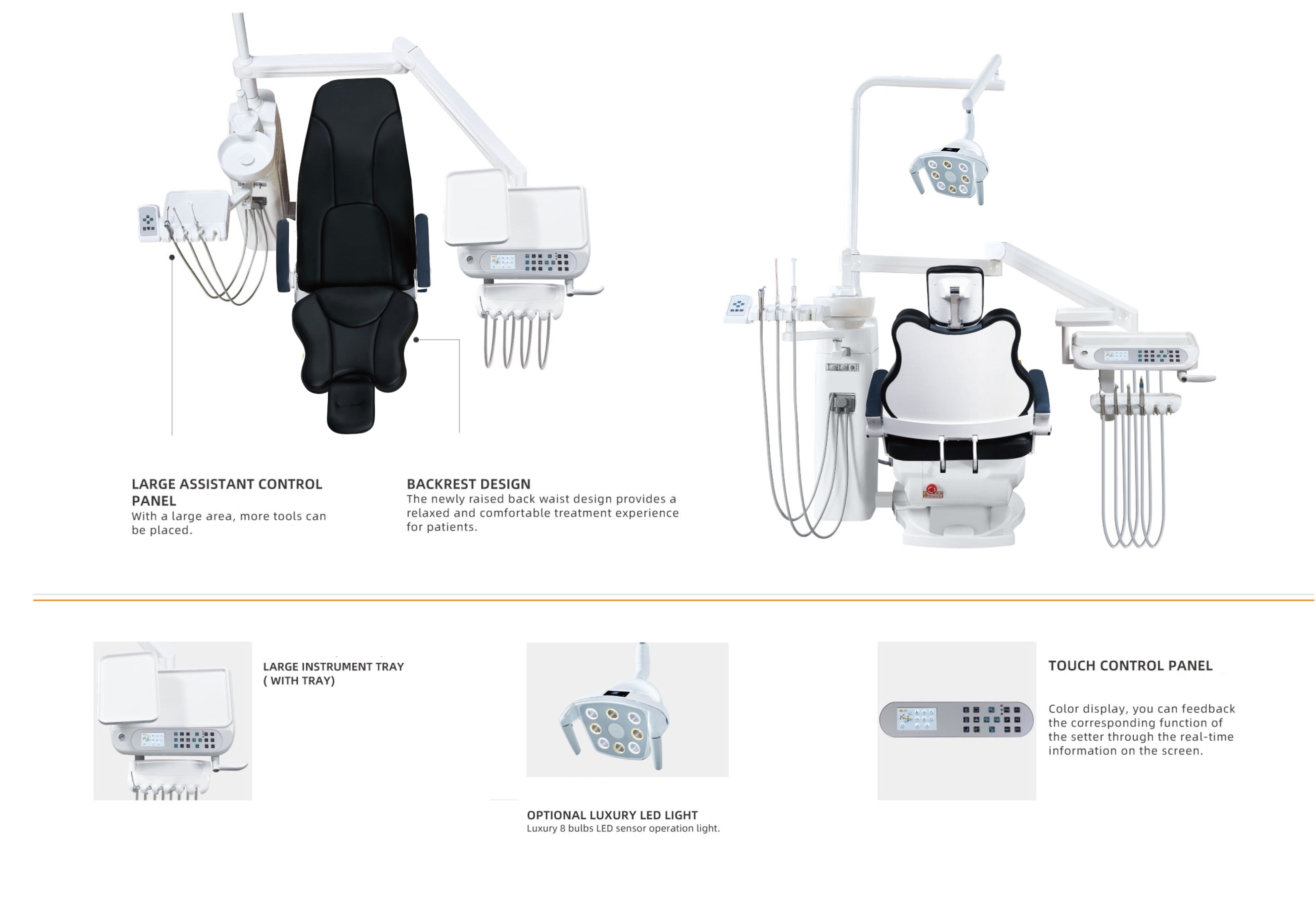

2. Instrument tray: large injection molded instrument tray, with brilliant streamlines on the surface of the tray;
3. Assistant frame: rotatable, control chair frame lifting, pitching, flushing water supply, heating and other functions, touch buttons, with upgrade reservation, suitable for four-handed operation
4. Spittoon: Italy imported solenoid valve, mouthwash quantitative automatic water supply control system 1 set, equipped with automatic heating constant temperature system
5. One set of strong and weak saliva suction system, and the external dirt collection cup can be easily disassembled and washed
6. A set of adjustable 8-hole LED oral cold light lamp

7.24V low-voltage control mouthwash device and a set of built-in low-voltage film viewer

8. 1 set of rotatable integral ceramic spittoon
9. Two sets of built-in mobile phone water purification systems
10. One set of pneumatic locking instrument arm
11. Combined foot switch, can control mobile phone, dental chair
12. The power system adopts a DC silent motor, and the headrest can be removed
13. Multifunctional compensation chair frame, leather seat cushion, increase patient comfort
14. The weak saliva suction device adopts water negative pressure, the working pressure is 200Kpa, the vacuum degree is ≧27Kpa, and the pumping rate is ≧450mL/min
15. The strong saliva suction device adopts negative air pressure, the working pressure is 400Kpa, the vacuum degree is ≧7Kpa, and the pumping rate is ≧1L/min
16. It has the function of cleaning the filter screen and the function of sediment filtration
17. The three-purpose gun is capable of spraying cold, heat, and mist, and can perform high-temperature vacuum sterilization at 135°C
18. The structure of the dental chair is a computer linkage type. The headrest can be folded and adjusted and locked at will. The leather cushion and the backrest of the fuselage can be disassembled, cleaned and replaced at any time. The dental chair has double armrests
19. Large injection molding floor-standing cabinet, easy to operate with four hands
20. Imported motor, leather cushion
21. Technical parameters:
22. Environment 5-40, relative humidity ≤ 80%
23. Power supply: AC 220V 50HZ
24. Air source pressure: 0.5MPa—0.8 MPa flow rate is less than 50L/min
25. Water source water pressure: 0.2MPa—0.4 MPa flow rate is less than 10L/min
26. Input power: 1200VA
27. Model of fuse: RF1-20, specification: 5x20 6A
28. Dental cold light bulb: a.c.24V/7VA; Dental light: the light spot is 800mm away from the lamp surface, the illumination adjustment range is 26000Lux~40000Lux, the temperature rise of the lighting area is ≤5℃, the rotation range of the oral light is ≥120
29. Film viewing lamp: illumination ≥ 6000 Lux
30. Water heater: DC24V/80VA
31. DC motor: d.c.24V/80VA
32. Range of reclining angle of backrest: 120mm
33. The maximum angle of seat back tilt: ≥10°
34. The dental chair can bear 135kg
35. The noise of the whole machine is ≤70db (A) (except air compressor)
36. The lowest chair position≦380mm, the highest chair position≧720mm
37. The handrail can withstand a vertical downward pressure of 335N and a horizontal tensile force of 220N
38. Instrument tray: the vertical movement range should be ≥350mm, and the deflection of the tray surface should be ≤3°
