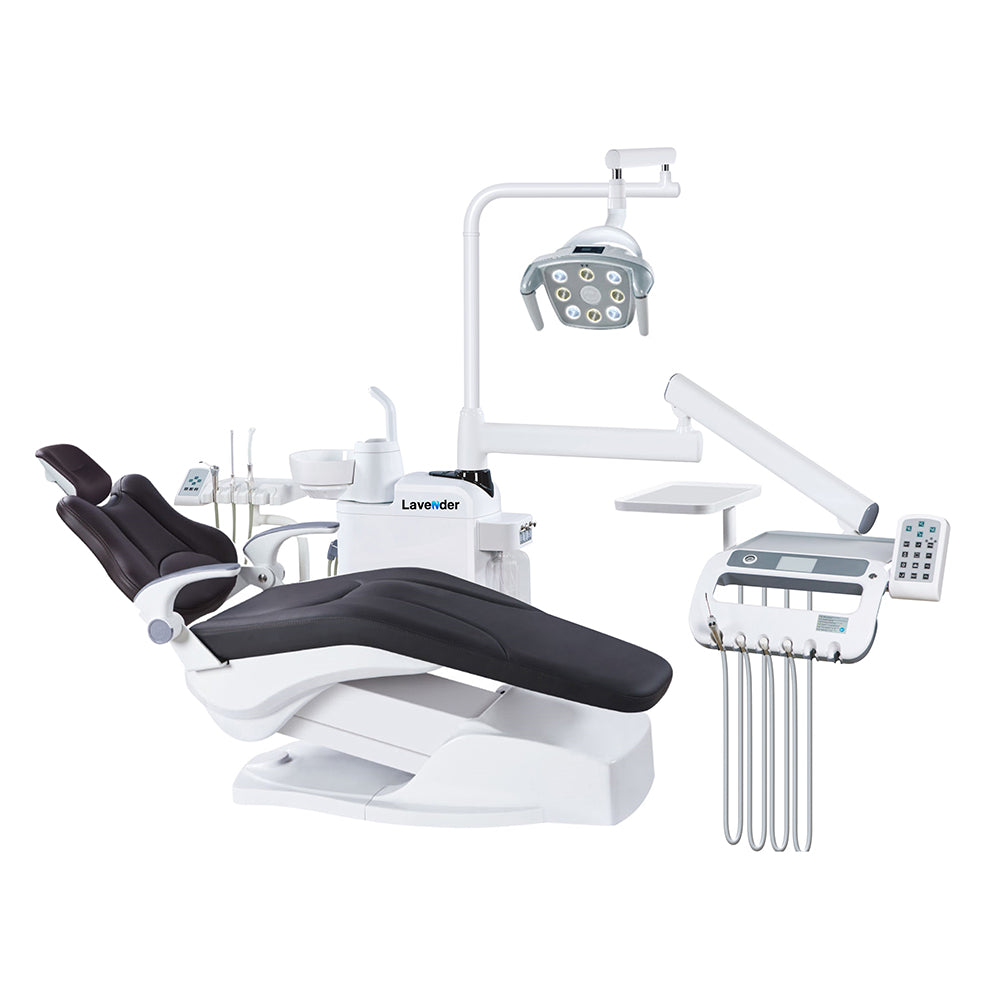

Dental Chair L-A3000 LUX

1. Technical parameters:
2. Environment 5-40, relative humidity ≤80%
3. Power supply: AC 220V 50HZ
4. Air source air pressure: 0.5MPa—0.8 MPa, the flow rate is less than 50L/min
5. Water pressure of water source: 0.2MPa—0.4MPa, flow rate less than 10L/min
6. Input power: 1200VA
7. Fusible wire model: RF1—20, specification: 5x20 6A
8. Oral cold light bulb: a.c. 24V/7VA; dental light: the light spot is at a distance of 800mm from the lamp surface, the illumination adjustment range is 8000Lux～35000Lux, the temperature rise of the lighting area is ≤5℃, and the rotation range of the dental light is ≥120
9. Film viewing light: Illumination ≥ 6000 Lux
10. Water heater: DC24V/80VA
11. DC motor: d.c.24V/80VA
12. Backrest tilt angle range: 120mm
13. The maximum angle of the back tilt of the seat cushion: ≥10°
14. The dental chair can withstand 135kg
15. The noise of the whole machine is less than or equal to 70db (A) (except for the air compressor)
16. The lowest seat position ≦ 380mm, the highest seat position ≧ 720mm
17. The armrest can withstand a vertical downward pressure of 335N and a horizontal pull of 220N
18. Instrument plate: the vertical movement range should be ≥350mm, and the deflection of the plate surface should be ≤3°

2. Standard configuration list:
3. Hygienic design to prevent cross infection
4. The large assistant rack can be rotated, and the assistant rack has an independent control panel, which is conducive to "four-hand" operation
5. Ultra-low seat design, the upper and lower balance parts of the seat frame are made of steel plates
6. 2 high-quality three-purpose guns
7. Control system: USB interface integrated computer control operating system, computer control panel including reset, chair lift, pitch, cold light, spittoon, water supply, heating and other function operation keys, touch switch control panel
8. Instrument tray: large injection-molded tool tray with stainless steel tray on the side
9. The spittoon is equipped with imported solenoid valve, a set of quantitative automatic water supply control system for mouthwash, equipped with automatic heating and constant temperature function
10. A set of strong and weak saliva suction systems each, and an external dirt collection cup can be easily removed and washed
11. A set of adjustable LED oral cold light

10.24V low voltage built-in viewing lamp set

11. A set of 90 degree rotatable ceramic spittoon
12. 2 sets of external mobile phone water purification system, double water bottles
13. A set of pneumatic locking instrument arms
14. A set of luxury multi-function combination foot switch
15. The power system adopts imported DC silent motor
16. It has the function of cleaning the filter screen and has the function of filtering the sediment
17. The structure of the dental chair is a computer non-linked type, the headrest can be folded and adjusted and pinned at will, two-stage headrest, suitable for adults and children, leather chair cushion, and the body backrest can be disassembled, cleaned, replaced at any time, dental Chair with double armrests
18. The water vapor pipeline is imported from the United States
19. Rotary chassis, convenient for four-handed operation
20. Metal Backrest
21. A luxury physician chair
