Dental Dental endo motor L-I48 Instructions

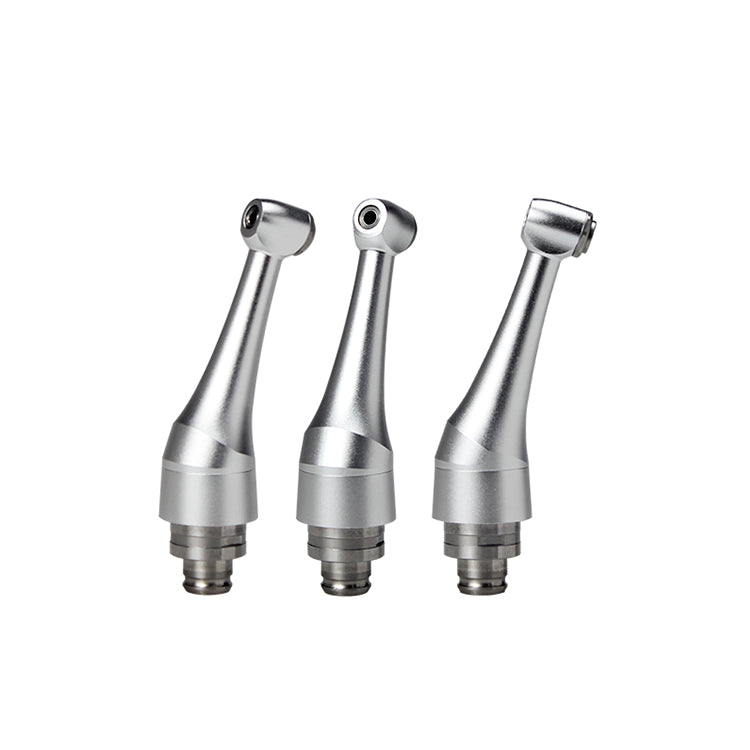

Dental Endo Motor L-I48 – Contra Angle Handpiece Standard Configuration 16:1
The 16:1 Contra Angle Handpiece is a key component of the L-I48 Dental Endo Motor, designed for precise and efficient root canal procedures. Key features include:
Key Features:
Precision Gear Ratio
The 16:1 gear ratio provides optimal torque and speed control for effective mechanical preparation of root canals, ensuring accurate file movement and reducing the risk of overloading the system.
Compact and Ergonomic Design
The compact size of the contra angle allows for easy handling and maneuverability, even in difficult-to-reach areas of the root canal. Its ergonomic design ensures comfort for the dentist during extended procedures.
Durable and Sterilizable
The handpiece is made from high-quality materials that ensure long-lasting durability. It is also autoclavable, allowing for safe sterilization at 135°C after each use to maintain optimal hygiene standards.
Compatible with Dental Files
The 16:1 Contra Angle Handpiece is designed to work seamlessly with standard root canal files, making it versatile and easy to use with various instruments during endodontic treatments.
Smooth Operation
The handpiece provides smooth and controlled operation, minimizing vibrations and enhancing the overall comfort and accuracy during treatment.
The 16:1 Contra Angle Handpiece ensures that the L-I48 Dental Endo Motor delivers consistent performance, helping dental professionals achieve precision and efficiency in every root canal procedure.

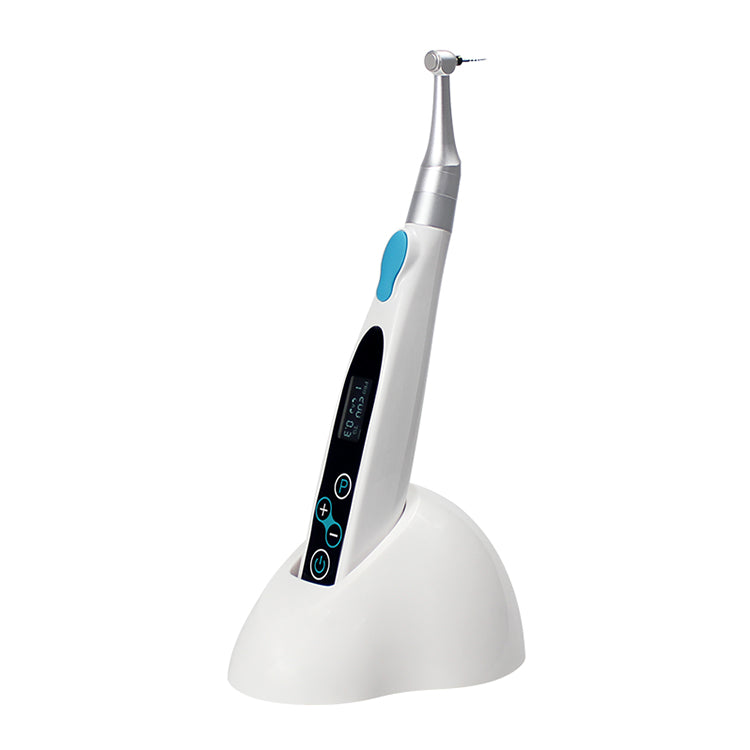

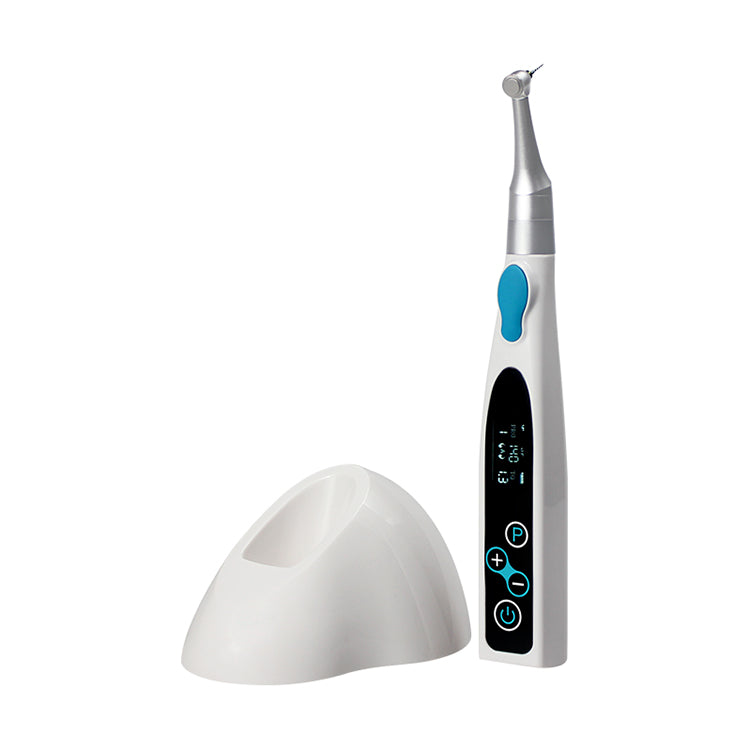

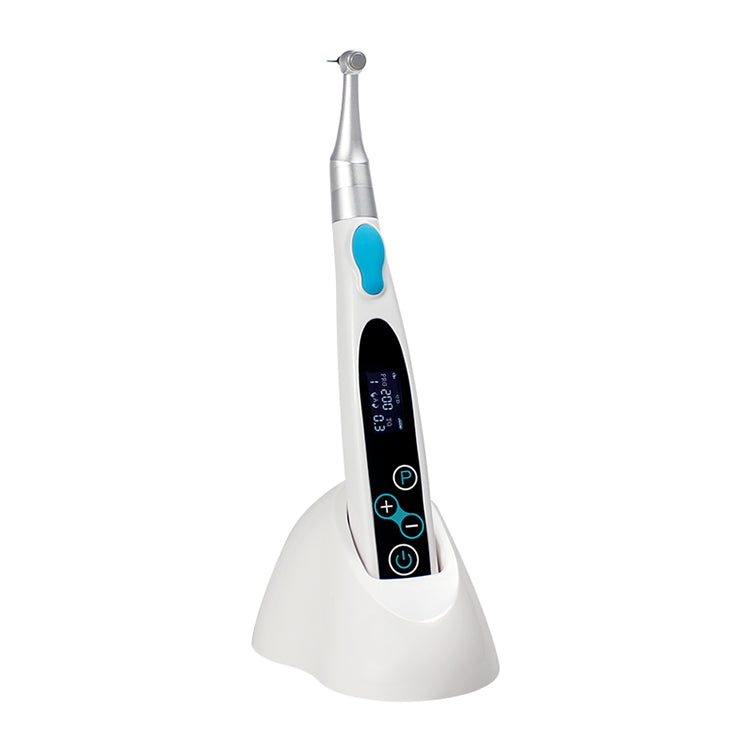

Dental Endo Motor L-I48 – Host Machine for Handheld Operation
The Host Machine of the L-I48 Dental Endo Motor is designed for handheld operation, providing the dentist with full control over the root canal treatment process. Key features include:
Key Features:
Ergonomic and Lightweight Design
The L-I48 Host Machine is designed with ergonomics in mind, making it lightweight and easy to handle during extended procedures. The compact design enhances maneuverability, allowing for better precision and comfort.
Intuitive Handheld Operation
The host machine allows for easy control of the motor with simple, intuitive buttons. It ensures precise adjustments during the treatment process, giving dental professionals the flexibility to make real-time changes for optimal outcomes.
User-Friendly Interface
The OLED display on the host machine shows real-time information, such as the battery level, preset programs, and temperature settings, making it easy to monitor the procedure and adjust settings as necessary.
Flexible and Portable
The handheld configuration allows the L-I48 motor to be highly portable, ideal for use in various clinical environments or mobile setups, ensuring easy access to difficult treatment areas.
Powerful and Efficient Performance
The host machine drives the motor with consistent power, offering optimal torque and speed control for effective root canal treatment, including automated reverse and load management functions.
The Host Machine for the L-I48 Dental Endo Motor provides complete control, offering dental professionals the flexibility, precision, and comfort needed to perform effective and safe root canal treatments.

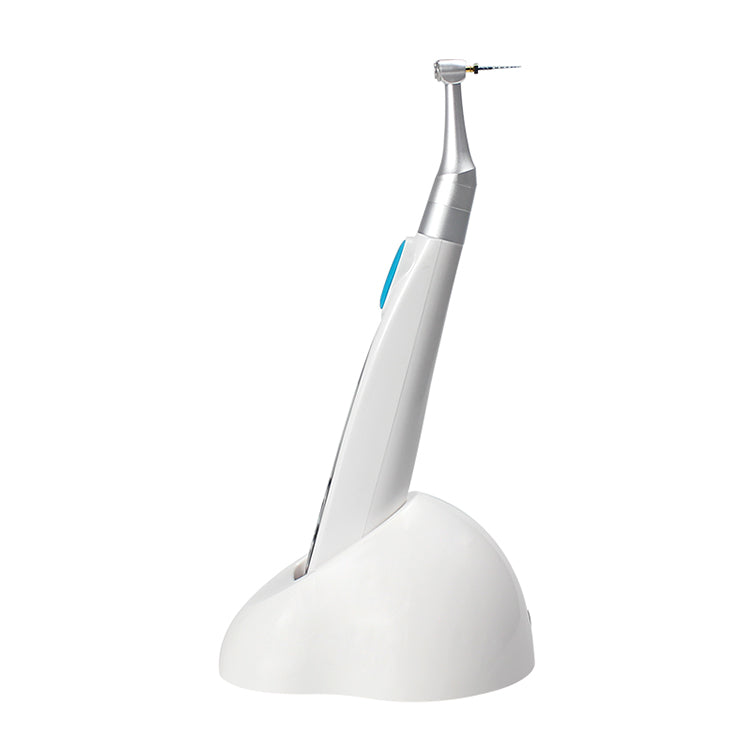

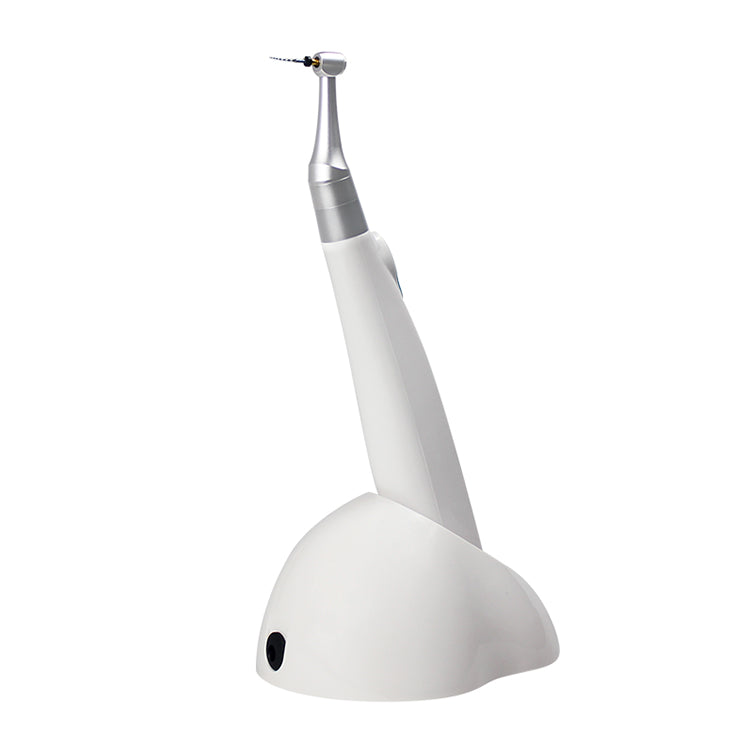

Dental Endo Motor L-I48 – Charging Base for Power Connection
The Charging Base for the L-I48 Dental Endo Motor is designed to connect the power and facilitate the charging of the motor when the battery is low. This component ensures that the L-I48 is always ready for use, providing reliable power for continuous root canal treatments.
Key Features:
Efficient Charging System
The charging base allows for quick and efficient recharging of the motor's rechargeable battery, ensuring minimal downtime between procedures. The charging system is designed to deliver consistent power for long-term usage.
Seamless Power Connection
When the battery is low, simply place the motor on the charging base to connect the power and recharge. This eliminates the need for multiple adapters and keeps the device organized.
Battery Protection
The charging base is designed with built-in overcharge protection to prevent damage to the rechargeable battery, extending its lifespan and ensuring the unit remains in optimal working condition.
Compact Design
The charging base is compact and space-saving, ideal for busy dental environments where space is a premium. It provides an organized way to store the motor and battery.
Efficient Power Management
When connected to the power adapter, the charging base allows for a quick and reliable recharge of the motor, ensuring that the L-I48 Dental Endo Motor is always fully charged and ready for use.
Dental Endo Motor Composition:
Host Machine: The main control unit for the endo motor, allowing for precise adjustments during treatment.
Treatment Handle (Traction Motor): Handheld component for controlled operation during root canal procedures.
Rechargeable Battery: Powers the system, providing long-lasting usage for multiple treatments.
Power Adapter (Charger): Charges the rechargeable battery via the charging base, ensuring the motor is always powered for efficient treatments.
The Charging Base ensures that the L-I48 Dental Endo Motor is always ready for use, providing convenient and reliable charging for uninterrupted endodontic procedures.
- Short press motor key, the files of contra angle starts to rotate, press the key again, the files of contra angle will stop rotating.
- When resistance is higher, press this key will exit the working situation. Long time press this key files of contra angle will be reverse rotating.
- This dental endo motor machine standard configuration 16:1 mini contra angle, has 9 program settings can be memorized,4 automatic control modes can be chosen,and speed or torque can be changed up&down when root canal treatment situation needs, more convenient for operation.
Press the program key P, you can preset 9 kinds of working procedures if you need for memory, also can choose 4 working modes, and adjust the speed(SP)and torque(TQ).
Press this key to increase or decrease the parameters of each item. When the current item is flashing , press "+/-" to change the parameter of the current item. While the files of contra angle is rotating, press“+/-"key can also change speed(SP)up&down. Please refer to the following parameters when using .
Press Power Key for 1 second to turn on the machine,LCD screen will display, and vice versa (press Power Key for 1 second , power is off and LCD screen will not display). This machine will be automatic shut-down in 20seconds if not working.
