dental endo motor L-I58 Standard Configuration

Machine Configuration for Dental Endo Motor L-I58

  • 1. Host Unit
    Size: Diameter 30 x 210mm
    Standard Working Voltage: DC 3.7V
    Provides central control for all operational functions and settings of the motor.
  • 2. Contra Angle
    Standard Configuration: 16:1 gear ratio.
    Allows for precise root canal shaping and file manipulation during treatment.
    Autoclavable for easy sterilization after each use to ensure hygiene standards.
  • 3. Power Adapter
    Input Voltage: 100V-240V~50/60Hz
    Output Voltage: DC 5V, 1A
    Powers the unit and allows for efficient charging of the built-in battery.
  • 4. Measuring Wire
    Used to accurately measure the length of the root canal during treatment, ensuring proper file placement and root canal preparation.
  • 5. Lip Hook
    Provides ease of operation by securing the lip in place, ensuring patient comfort and better access to the treatment area during procedures.
  • 6. File Clip
    Designed to securely hold the root canal files in place during treatment, ensuring consistent and stable operation.
  • 7. Base
    Provides stability and a secure docking station for the motor when not in use, keeping everything organized and within reach.

Core Functional Features:

  • Eleven Memory Programs: Provides the ability to store and recall settings for different treatment procedures.
  • Four Rotation Modes: Allows for versatility in root canal shaping and cleaning.
  • Apical Positioning Mode: Ensures accurate treatment at the root apex during procedures.
  • Adjustable Speed (120-550 rpm): Tailors motor speed for specific procedural requirements.
  • Adjustable Torque (0.6-3.0 N.cm): Provides customizable force control for safety and precision.
  • Adjustable Rotation Angle: Allows for flexible and accurate treatment in complex root canal systems.

Features for wireless dental endo motor L-I58

Check All Our Products

More Details of Dental endo motor L-I58

Check Our All Products

1. Precision with 16:1 Contra Angle Gear Ratio

The 16:1 contra angle provides optimal torque and speed control, ensuring accurate root canal shaping and efficient file manipulation during endodontic procedures.

2. Customizable Settings with 11 Memory Programs

With 11 preset memory programs, the L-I58 allows dental professionals to store and recall settings for different root canal treatment procedures, offering enhanced convenience and workflow efficiency.

3. Four Rotation Modes for Versatility

The motor offers four rotation modes, providing the flexibility to choose the optimal mode for each procedure, whether it's for shaping, cleaning, or apical positioning.

4. Apical Positioning Mode for Accurate Root Canal Treatment

The apical positioning mode ensures precise preparation at the root apex, making it an essential feature for effective root canal treatment.

5. Adjustable Speed for Optimal Control

The L-I58 allows speed adjustment from 120 to 550 rpm, providing greater control over the motor's performance to match the specific needs of each treatment phase.

6. Adjustable Torque for Safe Operation

With an adjustable torque range of 0.6 to 3.0 N.cm, the motor ensures precise control and reduces the risk of file breakage during treatment, enhancing safety.

7. Ergonomic and Lightweight Design

The L-I58 features an ergonomic and lightweight design, ensuring comfort during long procedures and minimizing hand fatigue for the dentist.

8. High-Quality and Sterilizable Components

The contra angle, lip hook, and file clip are autoclavable, ensuring hygienic standards and easy sterilization after each use for patient safety and infection control.

Dental endo motor L-I58

Check All Our Products

Dental endo motor L-I58 Installation

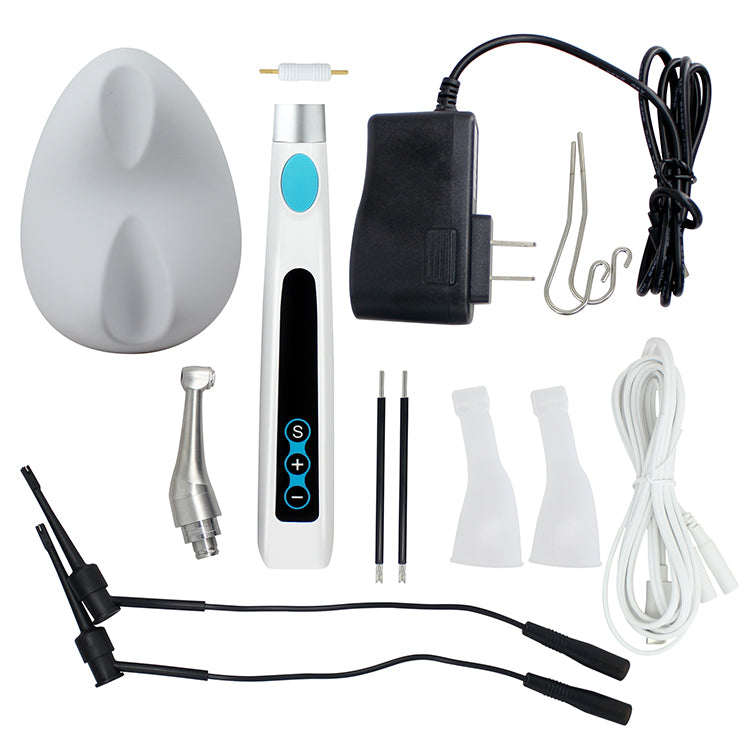

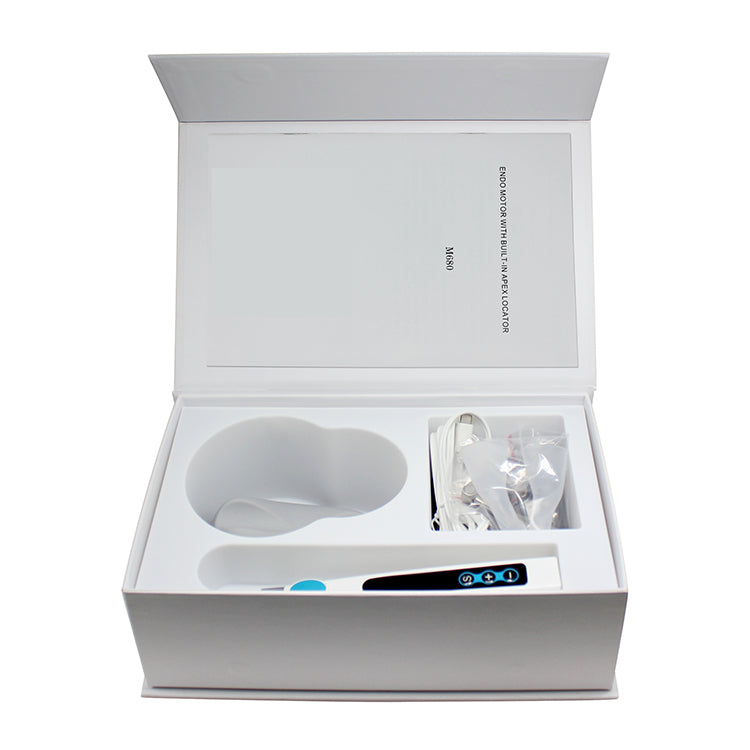

The packaging of the endo motor with built- in apex locator includes a 16:1contra angle, a host,a power adapter, a measuring wire , 2 lip hooks, a file clip, 2 silicone sleeves,and a base, which are separately packaged.

Dental endo motor L-I58 Connection of charging wire / measuring line:

1) Directly plug the connection port of the power adapter into the USB port at the bottom of the host, and connect the power to charge (as Figure a).

2) Insert the lip hook into one end socket of the measuring wire (as Figure b), insert the file clip into the other end socket of the measuring wire (if necessary),clamp the file with the file clip (as Figure c) (if necessary), and then connect the measuring wire interface to the USB port at the bottom of the host (as Figure a) to complete the connection of the measuring wire.

Note: Before each use , a wire connection test must be carried out. Press the power key and use the lip hook to contact the file of the host. Confirm that the display screen shows a screen for measuring the root canal length, and all the root canal length indicator bars are displayedwith a stable display of the figure"-3".

Dental endo motor L-I58 Installation and disassembly of contra angle

Check All Our Products

Installation and disassembly of contra angle-1

When you need to connect contra angle to the host, hold the contra angle, then insert it into the corresponding slot of the host until you hear a “click", contra angle installs well.

Installation and disassembly of contra angle-2

When you want to remove it, pull it out directly in straight direction.

The contra angle can rotate 360° and freely switch angles to meet the treatment needs of different tooth positions.

Dental endo motor L-I58 Installation And disassembly of dental file

Check All Our Products

Installation and disassembly of contra angle-1

Insert the file into the shaft hole of contra angle until hear voice“click”(do not press the buttonof contra angle while inserting), then try to take off the file without pressing the button of contra angle, if the file cannot be taken off, that means the file is installed well (as Figure a).

Installation and disassembly of contra angle-2

When you want to remove it, please press the button on the contra angle and take off the file directly at the same time (as Figure b).

If you need to use it for apical positioning operation, you need to connect the measuring wire, please refer to measuring wire connection.

Installation completed.
