Denntal Low-Speed handpiece Contra Angle Handpiece L-A120050

Standard Configuration

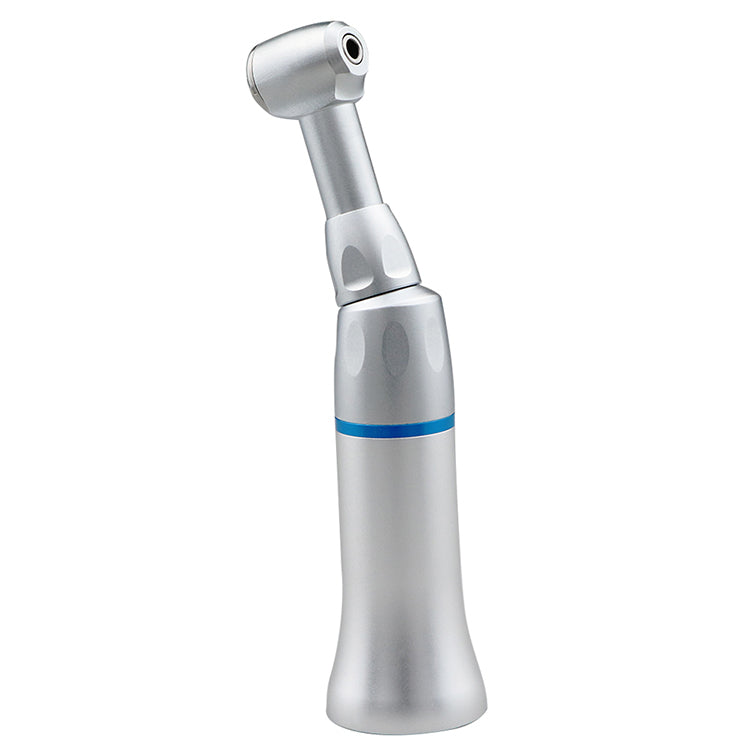

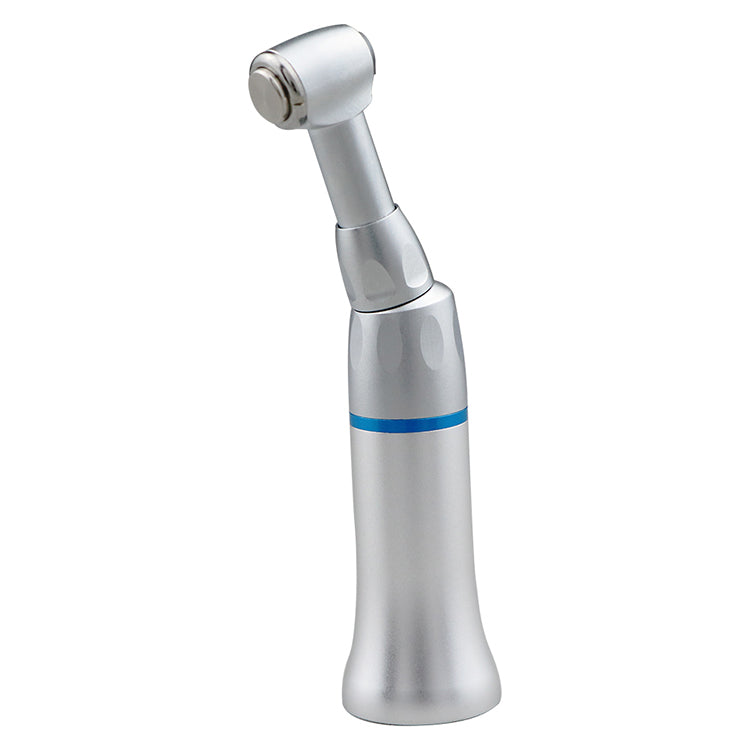

Low-Speed Contra Angle Handpiece

Function:

Designed for denture grinding and polishing, featuring an external water channel for effective cooling. Compatible with polishing brushes, polishing rings, and grinding heads. The ultra-low vibration frequency ensures smooth operation. Equipped with a stainless steel clasp for secure attachment and durability. Autoclavable at 135°C for high-temperature and high-pressure steam sterilization.

Technical Specifications:

Working Air Pressure: 0.3 MPa – 0.35 MPa

Speed Range: ≤15,000 RPM

Speed Ratio: 1:1

Noise Level: ≤68 dB

Lubrication For Low-speed handpiece Contra Angle handpiece

Check Our All Products

Low-Speed Contra Angle Handpiece Lubrication

Proper lubrication ensures optimal performance and longevity. Follow these steps after each use and before autoclaving:

1: Attach the spray nozzle firmly to the SPRAY can.

2: Shake the can 3-4 times to mix the lubricant and propellant.

3: Insert the nozzle into the rear of the handpiece and spray for 2-3 seconds until lubricant exits from the handpiece head or nose.

Lubricating the Low-Speed Contra Angle Handpiece

1: Disassemble the Handpiece

Swing open the latch plate.

Loosen the union on the head.

Remove the head from the sheath.

Take out the drive shaft assembly from the head or sheath.

2: Apply Lubricant

Supply lubricant at the indicated points (arrows) to ensure smooth operation.

Cartridge Replacemet For Low-speed handpiece Contra Angle

Check Our All Products

① Loose the union nut and remove the head from the sheath.

② Pull out the drive gear assembly fromthe head

③ Place cap wrench on the head cap and turn conter-clockwise. Unscrew and separate the cap

④Swing open the latch plate. Insert a bur blank or round rod into a hole from the head end, and pus out the cartridge.

⑤Insert the new cartridge, with its pin aligned in the slot of the head

⑥Reassemble in the reverse order.

Dental Low-Speed Motor and Handpiece

  • R/min (rpm) at 0.3MPa(3kgf/cm): 15,000
  • Water Consumption (ML/min) at0.25MPa(2.5kgf/cm): 5
  • Weight g(Midwest 4 -Hole): 90
    *(Speed may vary slightly depending on the back-end configuration, the direction of rotation, and type of hose used.)
