Denntal Low-Speed handpiece Contra Angle Handpiece L-A120069

Standard Configuration

Low-Speed Contra Angle Handpiece

Function:

Designed for denture grinding and polishing, featuring an external water channel for effective cooling. Compatible with polishing brushes, polishing rings, and grinding heads. The ultra-low vibration frequency ensures smooth operation. Equipped with a stainless steel clasp for secure attachment and durability. Autoclavable at 135°C for high-temperature and high-pressure steam sterilization.

Technical Specifications:

Working Air Pressure: 0.3 MPa – 0.35 MPa

Speed Range: ≤15,000 RPM

Speed Ratio: 1:1

Noise Level: ≤68 dB

Dental Handpiece Different Connecting Type:

Check Our All Products

Mounting of Handpiece

Mounting: Insert the E-type handpiece securely into the motor insert.

Removal: Gently pull out the handpiece from the motor for quick detachment.

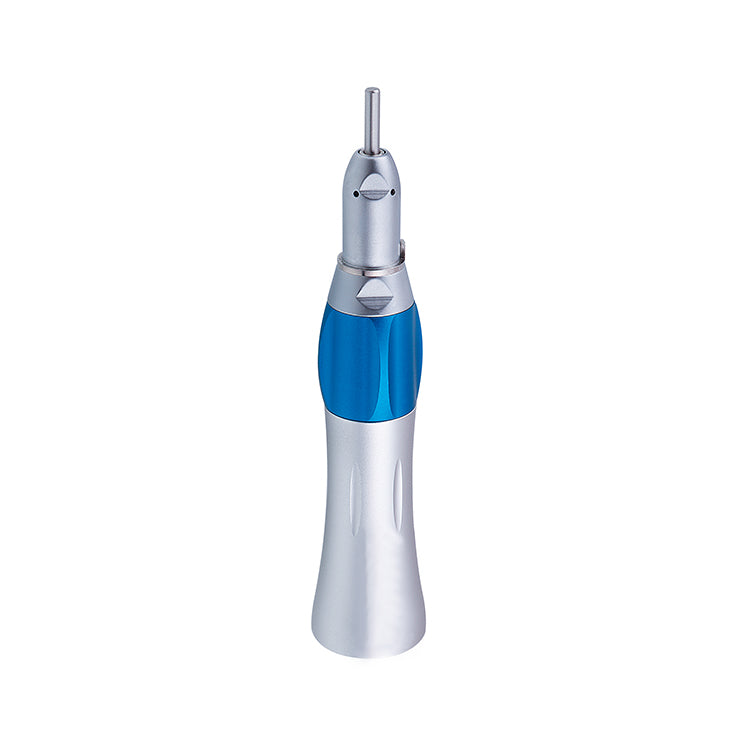

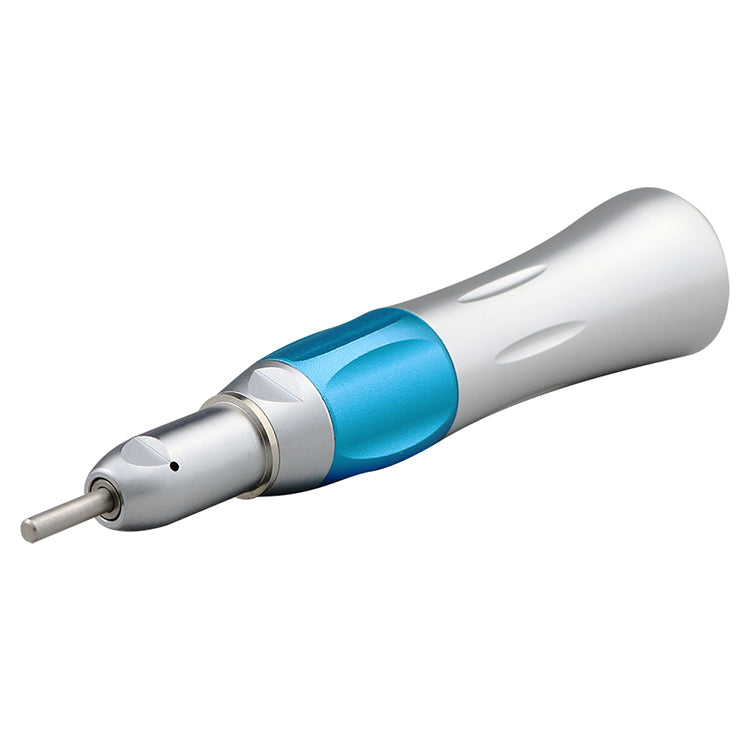

Specification For Low-speed Straight handpiece L-A120069

Check Our All Products

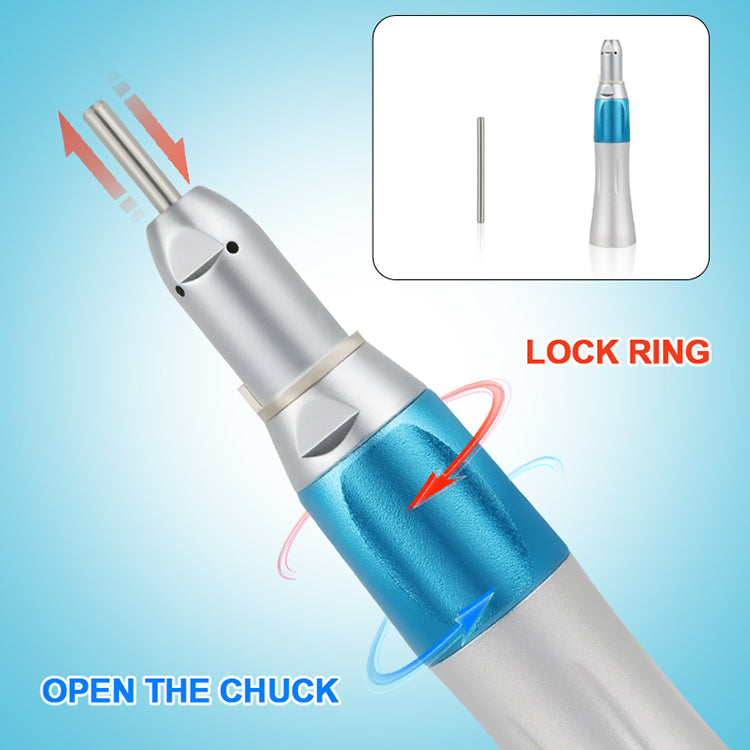

Mounting Burs

(1)Turn the Bur Lock Ring all the way in the direction of black arrow to open the chuck. Insert a bur into the chuck.(Fig.2)

(2)Return the Bur Lock Ring to the original position until a click sound is heard. (Fig. 2)

Dental Low-Speed Motor and Handpiece

  • R/min (rpm) at 0.3MPa(3kgf/cm): 15,000
  • Water Consumption (ML/min) at0.25MPa(2.5kgf/cm): 5
  • Weight g(Midwest 4 -Hole): 90
    *(Speed may vary slightly depending on the back-end configuration, the direction of rotation, and type of hose used.)

What Sets Lavender Dental Apart

Lavender Dental is a trusted name in the dental industry, renowned for providing high-quality, reliable dental equipment to professionals worldwide. Our brand stands out for its commitment to excellence, innovative solutions, and dedication to customer satisfaction. Whether you're outfitting a new dental practice or upgrading your existing equipment, Lavender Dental is your go-to partner for superior products and unmatched expertise.
