Denntal Low-Speed handpiece Air Motor L-A120038

Standard Configuration

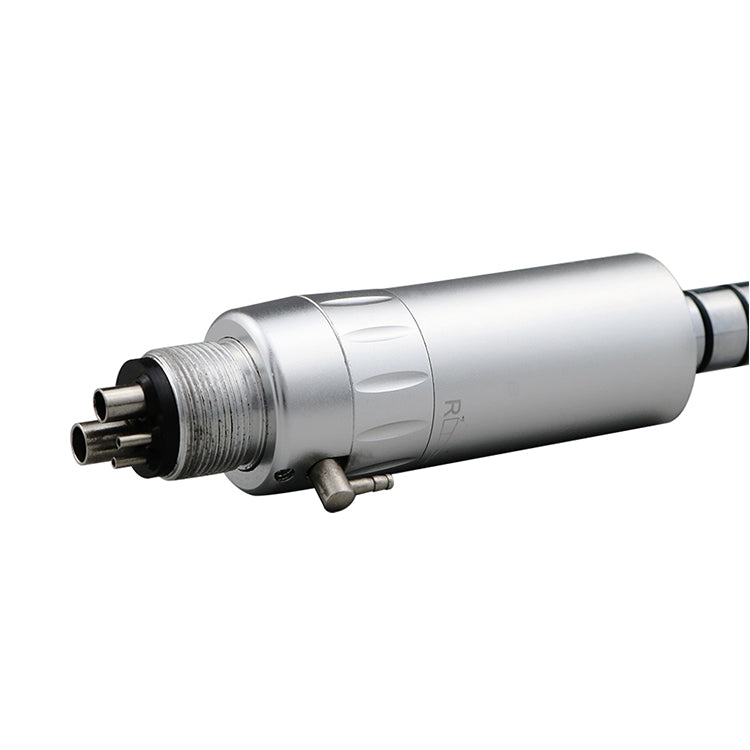

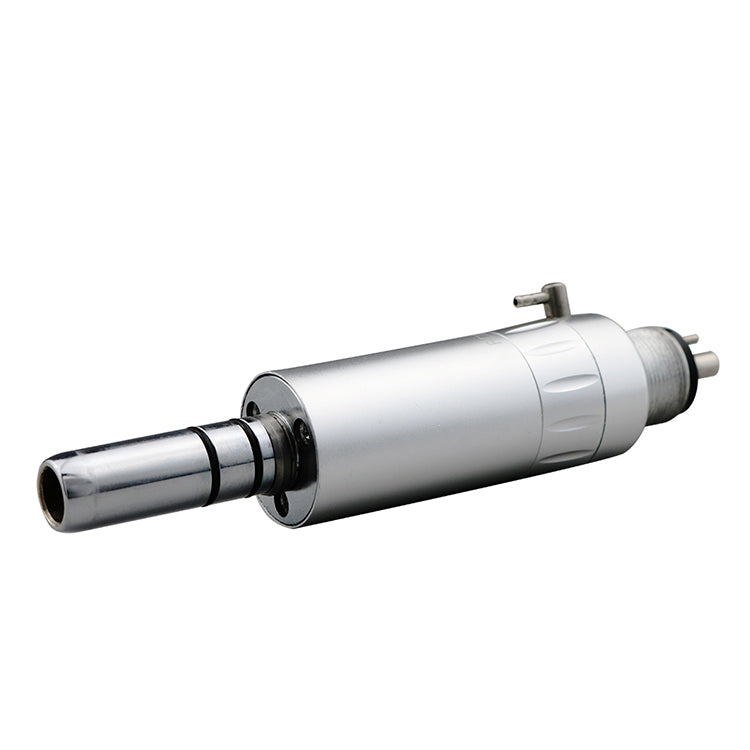

Dental Low-Speed Handpiece Air Motor
Key Features

  • Versatile Functionality
    Designed for grinding dentures and polishing procedures, with compatibility for polishing brushes, polishing rings, and grinding heads.
  • Smooth & Stable Operation
    Features ultra-low jitter frequency for precise and effortless handling, reducing hand fatigue during extended procedures.
  • External Water Channel
    Ensures effective cooling and debris removal, improving efficiency and patient comfort.
  • Durable & Sterilizable
    Constructed with a stainless steel clasp, capable of withstanding high-temperature and high-pressure steam sterilization at 135°C for optimal hygiene.
  • Quiet & Efficient Performance
    Operates at a noise level of ≤68 dB, providing a quieter working environment while maintaining high efficiency.
  • Precision Speed Control
    Supports a speed range of ≤15,000 RPM with a 1:1 transmission ratio, ensuring controlled and consistent performance.

Technical Specifications

Working Air Pressure: 0.3–0.35 MPa

Speed Range: ≤15,000 RPM

Speed Ratio: 1:1

Noise Level: ≤68 dB

Sterilization: Autoclavable at 135°C

Dental Handpiece Different Connecting Type:

Check Our All Products

Mounting of Handpiece

Mounting: Insert the E-type handpiece securely into the motor insert.

Removal: Gently pull out the handpiece from the motor for quick detachment.

Forward/Reserve Rotation For Low-speed handpiece Air Motor

Check Our All Products

FWD/REV Change Ring for Low-Speed Air Motor

Forward Rotation: Turn the FWD/REV Change Ring to "F" as shown

FWD/REV Change Ring for Low-Speed Air Motor

Reverse Rotation: Turn the FWD/REV Change Ring to "R" as shown

FWD/REV Change Ring for Low-Speed Air Motor

Neutral Position: When positioned between "F" and "R," the drive air is interrupted, stopping motor rotation.

Lubrication For Low-speed handpiece Air Motor

Lubrication is required at least once a day. Use of PANA-SPRAY or LANCO Air Turbine Oil (Cat. No.Z016-112) is recommended (1) AM100 Air-motors Disconnect the motor from the handpiece hose, and supply a few drops of Air Turbine Oil or PANA-SPRAY for a few seconds into the drive air tube at the back end of the motor as shown
Check Our All Products

Dental Low-Speed Motor and Handpiece

  • R/min (rpm) at 0.3MPa(3kgf/cm): 15,000
  • Water Consumption (ML/min) at0.25MPa(2.5kgf/cm): 5
  • Weight g(Midwest 4 -Hole): 90
    *(Speed may vary slightly depending on the back-end configuration, the direction of rotation, and type of hose used.)
