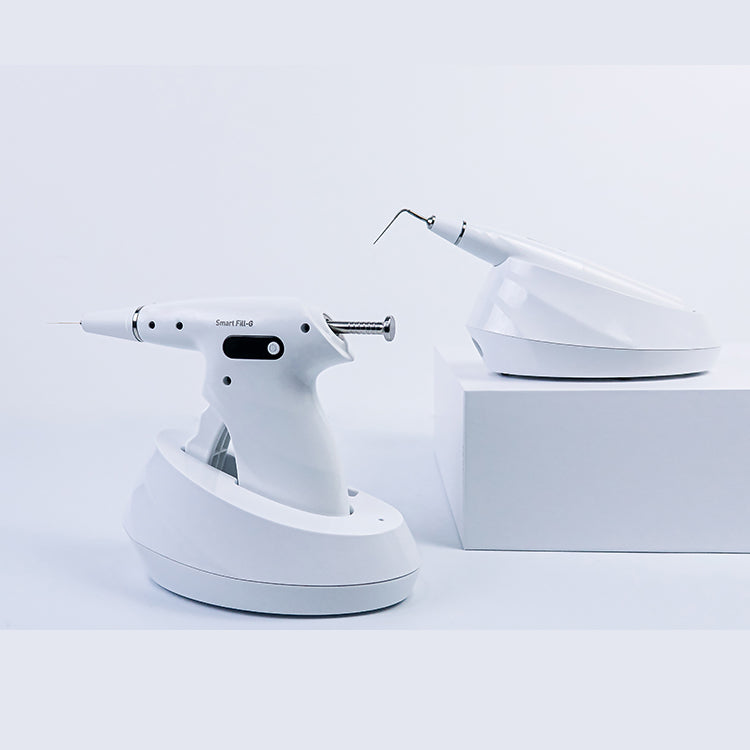

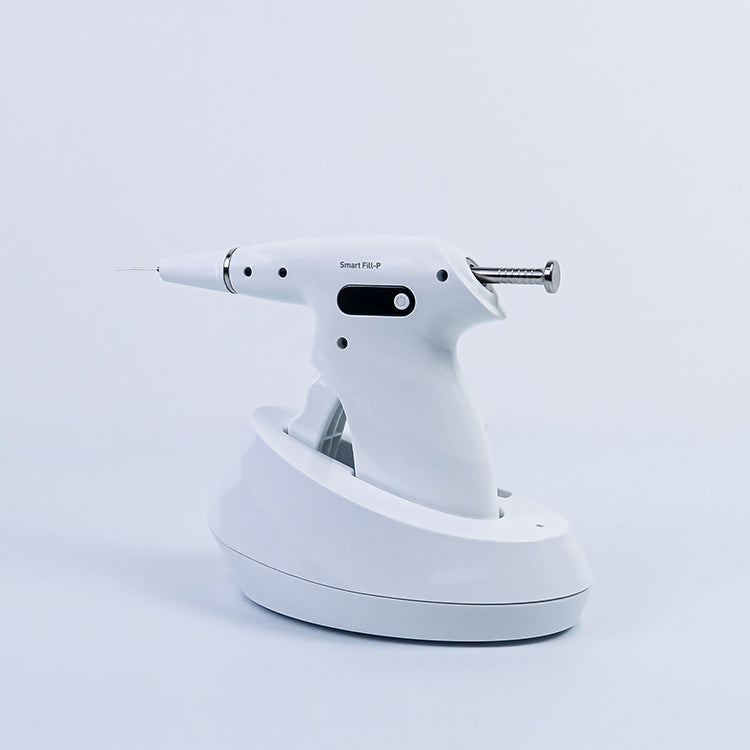

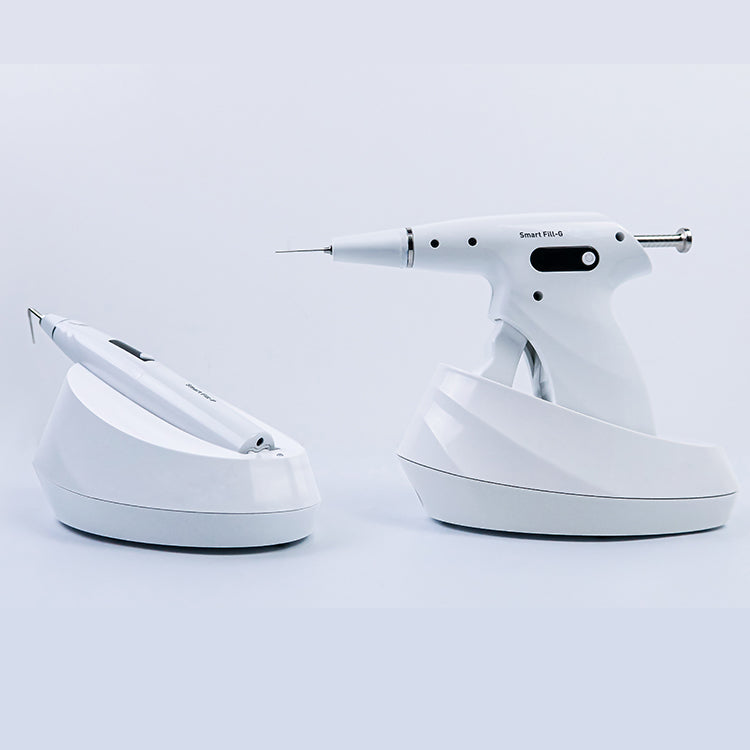

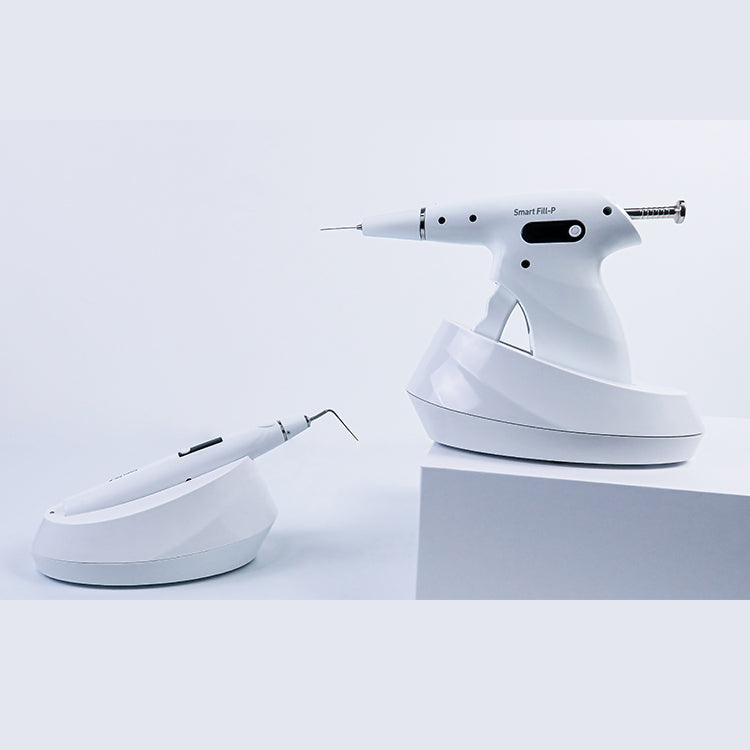

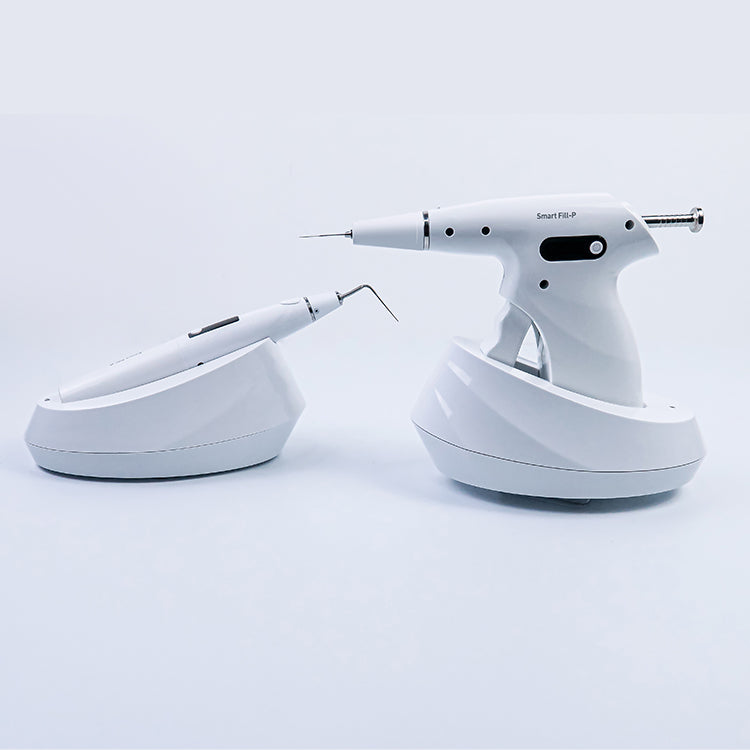

Dental Obturation system L-A FILL-G Instructions
- Dental Obturation System L-A FILL-G – Gutta-Percha Injection Needle
- The Gutta-Percha Injection Needle of the L-A FILL-G is a key component designed to deliver softened gutta-percha into the root canal with precision. Key features include:
- Precision Delivery: The needle is designed to inject softened gutta-percha directly into the root canal, ensuring accurate and efficient obturation.
- Optimal Fit: The needle is compatible with the L-A FILL-G system, providing a seamless fit and reliable performance during procedures.
- Enhanced Flexibility: The needle allows for easy manipulation and precise control, ensuring proper placement and complete filling of the root canal space.
- Durable and Safe: Made from high-quality materials, the needle is built for durability and resistance to wear, offering long-lasting reliability for multiple uses.
- Ergonomically Designed: Provides comfortable handling, making it easier for dental professionals to operate with minimal hand strain, even during long procedures.
- The Gutta-Percha Injection Needle enhances the L-A FILL-G Dental Obturation System, ensuring effective root canal obturation with precise material placement and a secure seal.
Dental Obturation System L-A FILL-G – Heat Insulation Sleeve for Injection Needle
The Heat Insulation Sleeve for the L-A FILL-G Gutta-Percha Injection Needle is designed to enhance safety and comfort during endodontic treatments. Key features include:
Thermal Protection: The sleeve effectively insulates the injection needle from excessive heat, ensuring that the dentist can safely handle the needle without discomfort or risk of burns.
Prevents Overheating: Helps to maintain controlled temperatures during the injection of softened gutta-percha into the root canal, preventing overheating of surrounding tissues.
Ergonomic Design: Provides comfortable handling by allowing the dentist to work with the needle without direct exposure to the heated material, enhancing safety and precision.
Durable and Reusable: Made from high-quality, heat-resistant materials, the sleeve is durable and designed to withstand multiple uses, maintaining its performance over time.
Easy to Install: The sleeve is simple to attach to the injection needle, providing a secure fit and effective insulation during every use.
The Heat Insulation Sleeve is an essential accessory for the L-A FILL-G system, ensuring safe and efficient obturation by protecting both the dental professional and the patient during the root canal filling process.
Dental Obturation System L-A FILL-G – Heat Insulation Hood
The Heat Insulation Hood of the L-A FILL-G Dental Obturation System is designed to ensure safe, precise, and efficient root canal filling procedures.
Key Features:
Enhanced Thermal Protection
The heat insulation hood prevents excessive heat transfer, ensuring safe operation for both the dentist and the patient.
Consistent Temperature Control
Helps maintain stable heat levels during gutta-percha melting and injection, reducing risks of overheating and ensuring proper obturation.
Ergonomic and Comfortable Design
Provides an additional layer of protection, allowing the dentist to handle the instrument comfortably without the risk of burns.
Durable and Heat-Resistant Material
Made from high-quality, temperature-resistant materials, ensuring long-term usability and reliability.
Optimized for Efficiency
Ensures efficient energy use while maintaining precise heat distribution, contributing to a smooth obturation process.
The Heat Insulation Hood is an essential component of the L-A FILL-G system, enhancing safety, comfort, and performance during endodontic procedures.
Dental Obturation System L-A FILL-G – Gutta-Percha Loading Slot
The Gutta-Percha Loading Slot of the L-A FILL-G Dental Obturation System is designed for easy and efficient loading of gutta-percha into the injection needle, optimizing the obturation process.
Key Features:
Efficient Gutta-Percha Loading
The loading slot allows for quick and secure insertion of gutta-percha into the needle, ensuring smooth and uninterrupted backfilling during root canal procedures.
Precisely Measured
Ensures the correct amount of gutta-percha is loaded into the needle, promoting accurate and consistent material delivery to the root canal.
User-Friendly Design
Designed for easy operation, allowing dental professionals to load the gutta-percha with minimal effort, increasing efficiency and reducing procedure time.
Secure Fit
The slot holds the gutta-percha securely in place during the loading process, preventing material spillage or contamination.
Durable and Long-Lasting
Made from high-quality materials, the loading slot is durable and built to withstand the rigors of daily use in dental practices.
The Gutta-Percha Loading Slot is an essential feature of the L-A FILL-G system, providing easy loading of material and ensuring a precise and effective root canal obturation.
L-A FILL-G Dental Obturation System – Battery Level Indicator
The Battery Level Indicator of the L-A FILL-G Dental Obturation System provides real-time feedback on the device’s battery power, helping to ensure that the system remains ready for use throughout dental procedures.
Key Features:
Real-Time Battery Display
The OLED screen shows the battery status with five grid bars when fully charged, indicating the power level visually for easy monitoring.
Low Battery Warning
When the display shows one grid, the system alerts you that the battery is low and should be charged soon to avoid running out of power.
Critical Low Battery Alert
If the display shows a blank space, it signals that the battery is very low, requiring immediate charging to prevent the device from shutting down.
Battery Life Management
For optimal battery life, avoid allowing the power to reach the empty state (space status) during normal use, as this can shorten the battery’s lifespan.
The Battery Level Indicator ensures that the L-A FILL-G system operates without interruptions, promoting efficiency and prolonging battery lifespan with clear and actionable charging alerts.
Dental Obturation System L-A FILL-G – Temperature Control
The Temperature Control feature of the L-A FILL-G Dental Obturation System ensures precise and accurate heating for optimal root canal obturation. Key features include:
Key Features:
Preset Temperature Display
The OLED screen shows the preset temperature value once selected, providing clear guidance on the desired operating temperature.
Real-Time Temperature Monitoring
Approximately 1 second after presetting, the screen will display the real-time temperature inside the heating chamber, ensuring that the system is heating to the correct level.
Heating State Indicator
While the Melting and Filling Gun is actively heating, the temperature indicator will display the current temperature, giving the user continuous feedback during operation.
Accurate Temperature Control
Helps prevent overheating and ensures that the gutta-percha is properly softened for safe and effective root canal obturation.
The Temperature Control feature of the L-A FILL-G ensures precise heating for optimal material handling, enhancing the overall efficiency and effectiveness of endodontic treatments.
Dental Obturation System L-A FILL-G – ON/OFF Button and Temperature Control Button
1) “ON/OFF” Button:
Turning On the Device
In the OFF state, a long press of either the left or right "ON/OFF" button will power the device on. After powering up, both the left and right displays will light up simultaneously.
Turning Off the Device
In the ON state, a long press of the left or right "ON/OFF" button will turn the device off, conserving power when not in use.
Auto Shut-Down Feature
If the device is left inactive for 10 minutes, the Melting and Filling Gun will automatically shut down to prevent overheating and save energy.
2) Temperature Control Button:
Multi-Function Button
The "ON/OFF" button also serves as the temperature control button once the device is powered on.
Adjusting Temperature
Lightly press the button to change the preset temperature for heating the gutta-percha. The temperature settings cycle through:
150°C → 180°C → 200°C → 230°C, and then back to 150°C after the 230°C setting.
Quick and Easy Temperature Adjustment
This user-friendly control allows for fast and efficient adjustments to the temperature, ensuring that the gutta-percha is heated to the optimal level for root canal obturation.
The "ON/OFF" and temperature control functionality streamline the operation of the L-A FILL-G, enhancing both ease of use and workflow efficiency in endodontic treatments.
(8)Dental Obturation System L-A FILL-G – Pushing Ram
The Pushing Ram in the L-A FILL-G Dental Obturation System is an essential component designed to precisely and efficiently deliver gutta-percha into the root canal during obturation procedures.
Key Features:
Precise Material Delivery
The Pushing Ram provides controlled movement to push softened gutta-percha into the root canal, ensuring accurate and even filling of the canal space for optimal sealing.
Smooth Operation
Designed to operate seamlessly with the gutta-percha injection needle, the ram ensures consistent material flow, enhancing the overall efficiency of the obturation process.
Ergonomic Control
The ram is designed to be easily operated with minimal effort, providing dental professionals with precise control during the injection and filling process.
Durable and Reliable
Constructed from high-quality materials, the Pushing Ram is built to withstand repeated use, maintaining consistent performance over time.
Enhanced Treatment Efficiency
The Pushing Ram ensures the quick, safe, and complete filling of root canals, improving both the quality of the treatment and the overall patient experience.
The Pushing Ram is a key feature of the L-A FILL-G system, providing consistent material delivery for precise and reliable root canal obturation.
(9)
- (10) L-A Q8PRO Dental Curing Light – Endo Guide Lens
The Endo Guide Lens for the L-A Q8PRO Dental Curing Light is specifically designed for root canal treatments and endodontic procedures. Key features include:
Precision Illumination: The Endo Guide Lens focuses the light beam to precisely target the treatment area, ensuring effective curing of resin-based materials used in endodontics.
Enhanced Accessibility: Designed with a narrow and focused light path, the lens allows easy access to deep root canals and other hard-to-reach areas.
Efficient Light Delivery: The lens ensures uniform light intensity for optimal polymerization, providing consistent results in endodontic procedures.
Autoclavable: Made from durable, high-quality materials, the Endo Guide Lens is autoclavable, ensuring easy cleaning and maintenance for hygienic use in multiple patients.
This specialized Endo Guide Lens optimizes the L-A Q8PRO for endodontic applications, ensuring reliable and precise curing for root canal treatments. - (10) L-A Q8PRO Dental Curing Light – Microcure Lens
The Microcure Lens for the L-A Q8PRO Dental Curing Light is designed for precise, targeted curing in small or detailed dental areas. Key features include:
Focused Light Beam: The Microcure Lens narrows the light beam for accurate and controlled curing, ideal for smaller treatment areas or intricate dental procedures.
Enhanced Precision: Provides uniform light intensity with minimal spread, ensuring consistent polymerization in localized regions.
Ideal for Small-Scale Curing: Perfect for small cavities, resin fillings, and detailed cosmetic work, where precision is critical.
Autoclavable: Made from high-quality, durable materials, the lens is autoclavable for easy sterilization and reuse, maintaining optimal hygiene standards.
The Microcure Lens enhances the L-A Q8PRO's versatility, offering precise, reliable curing for detailed dental applications.
- (11) L-A Q8PRO Dental Curing Light – Light Intensity Measurement Button
The Light Intensity Measurement Button on the L-A Q8PRO Dental Curing Light provides easy access to real-time light intensity readings. Key features include:
Instant Intensity Feedback: Pressing the button activates a display showing the current light intensity in mW/cm², ensuring the light is delivering the required power for effective curing.
Accurate Calibration: Helps verify that the light intensity is consistent and within the optimal range for curing different materials.
User-Friendly Operation: The simple, one-touch button allows dental professionals to quickly monitor and adjust the light intensity, ensuring reliable and consistent curing results.
Efficient Quality Control: Ensures that the curing light is performing correctly, contributing to accurate polymerization and enhancing the overall quality of dental procedures.
The Light Intensity Measurement Button adds an additional layer of precision and control, ensuring that the L-A Q8PRO performs at its best for every treatment. - (12) L-A Q8PRO Dental Curing Light – USB Charging Port
The USB Charging Port on the L-A Q8PRO Dental Curing Light offers convenient and versatile charging options for modern dental practices. Key features include:
Universal Compatibility: The USB charging port allows for easy connection to a wide range of charging devices, including portable power banks, computers, and USB adapters, providing flexibility for charging.
Fast and Efficient Charging: Ensures quick and efficient recharging of the rechargeable lithium battery, keeping the curing light ready for use without long downtime.
Convenient Charging Setup: The USB port allows for charging in various settings, making it ideal for use in clinics, mobile units, or on-the-go when needed.
Compact and Space-Saving: The use of a USB port reduces the need for bulky adapters, allowing for a more compact and organized workspace.
The USB Charging Port enhances the L-A Q8PRO’s ease of use, providing a reliable and adaptable charging solution for any dental environment.
