Dental Dental Endo Motor L-A Smart Fiber Structure

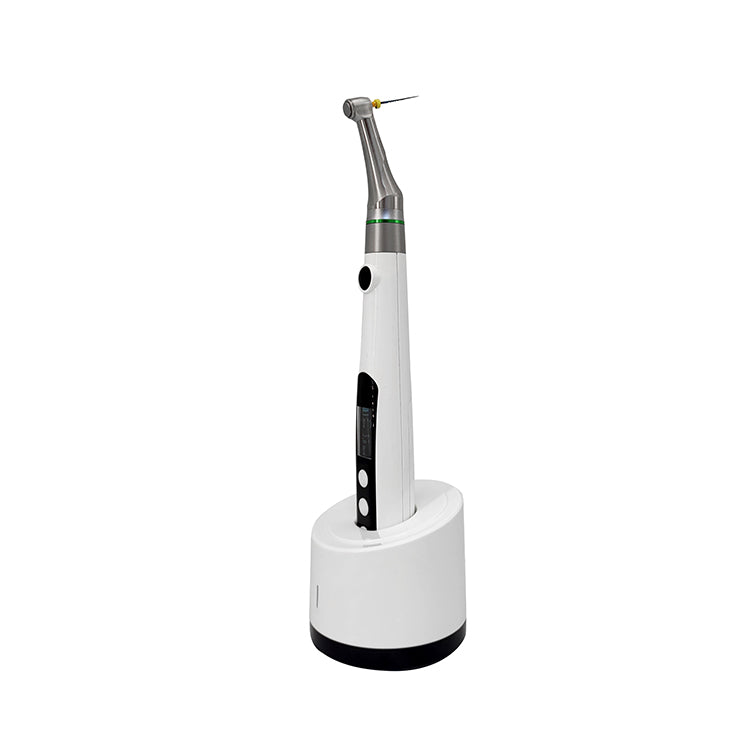

The "DC 5.0 V Charging Socket" is the connection point for the endo motor's charging base. It ensures reliable and efficient wireless charging for the device. The socket is designed to handle the necessary power input for charging the endo motor's lithium battery, facilitating convenient and secure recharging without the need for physical contact. This socket supports the endo motor's overall portability, allowing quick charging and extended usage during dental procedures.

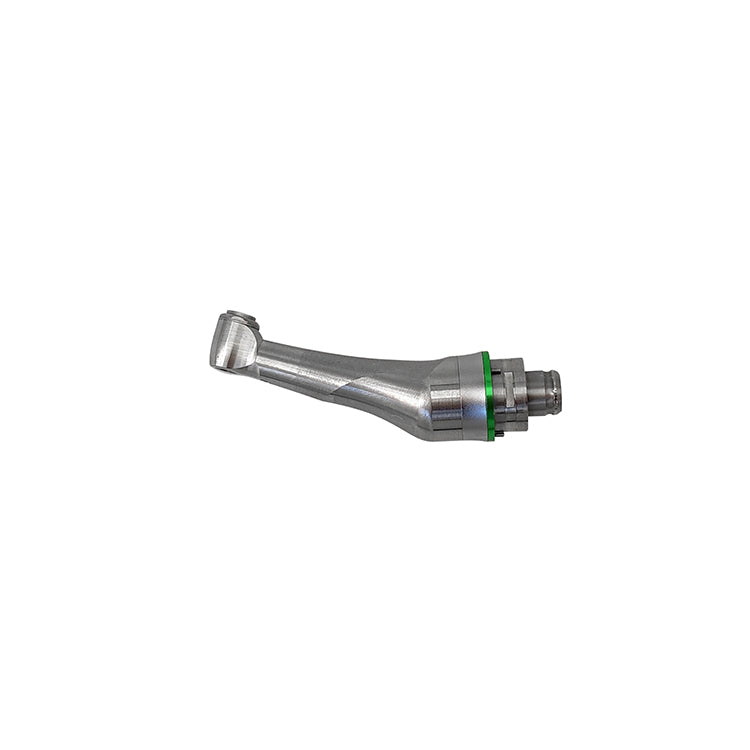

The 1:1 Handpiece is designed to deliver precise, direct mechanical power for root canal treatments. It features a 1:1 gear ratio, meaning that the rotation speed of the handpiece directly matches the motor speed, ensuring accurate and controlled movements during the procedure. This handpiece is compatible with the L-A SMART Fiber Endo Motor, providing enhanced performance and efficiency during root canal preparation and cleaning. Its ergonomic design ensures comfort and ease of use for the dentist, while its high-quality construction guarantees durability and reliability for frequent use.
L-A SMART Fiber Endo Motor - "Power/Start Button" Operating Instructions
Starting the Handle
When the handle is off, press and hold the “Power On/Start” button to enter the standby state.
After the device enters standby, press the “Power On/Start” button again to begin the working state.
Stopping the Handle
Press the “Power On/Start” button once more to return to the standby state.
This simple operation allows you to easily control the start and stop of the handle during use.
1: The sequence number of the custom program, the serial number is 1-10，and there are 10 custom programs.
2: Battery capacity
3: Working mode
4: Set speed
5: Set torque
L-A SMART Fiber Endo Motor - "Set Key 'S' Function Selection"
Accessing Function Settings
Press the function setting key "S" on the standby interface to enter the settings menu.
Adjustable Settings
In the settings menu, you can adjust:
Working Mode
Speed
Torque
Automatic Round-trip Angle
Confirming and Exiting
After making your adjustments, press the “Power On/Start” button to return to the standby state and confirm your settings.
This function allows you to customize your device settings to suit your specific endodontic needs.
Operation Mode:
In this interface, use the adjustment key "▲/▼" to select the
following six working modes:
Fwd: Forward 360°automatic movement, positive rotation plus torque reversal,remove the torque and resume normal rotation.
Rev: reverse automatic continuation: reverse 360°automatic motion, reverse plus torque forward rotation,remove the torque and resume the reversal.
A F:Forward reciprocating motion, continuous cycle between forward rotation and reverses.
AR: Reverse reciprocating motion, continuous cycle between reverses and forward rotation.
TCF: Automaticreverse close: forward 360°,when encounter torque , will stop,it is used to remove the broken files with Anti-bearing knife.
TCR: Automatic forward rotation close: reverse360°，when encounter torque, will stop, it is used to remove the broken files with positive knife.
