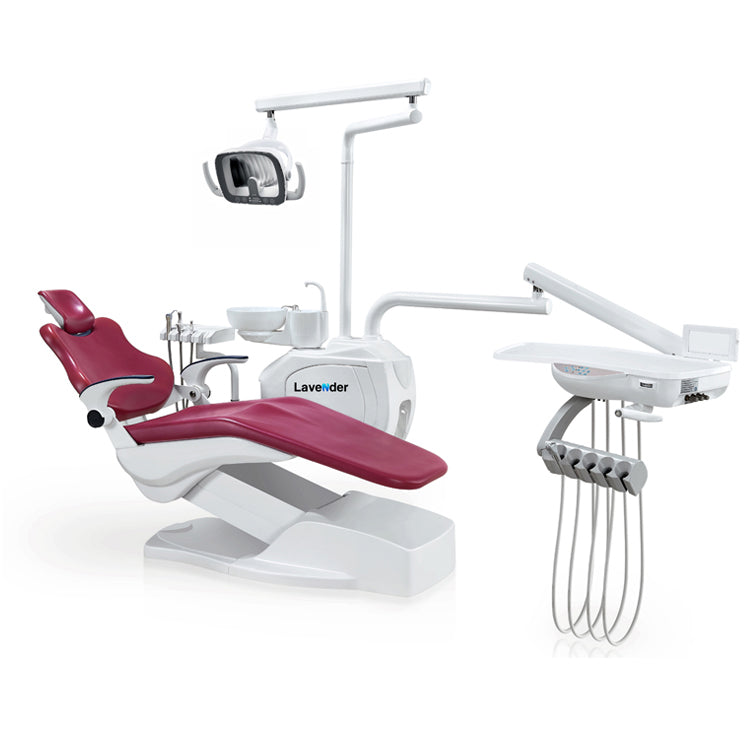

Dental Chair Unit L-A1000 OEM

Dental unit

L-A2000  technical parameters

 standard configurations:

1. Anti-cross-infection hygienic design
2. The rotatable assistant frame is good for "four-handed" operation
3. With compensation chair frame, the chair frame adopts electrophoresis process surface treatment, set 3 sets of memory function with interlocking function
4. Two three-purpose guns
5. Control system: USB interface integrated computer control operating system, computer control panel includes reset, chair position lifting, pitching, cold light, spittoon flushing, water supply, heating and other functional operation keys, light touch switch control panel
6. Instrument tray: large injection molding tool tray
7. The spittoon is equipped with a solenoid valve imported from the United States and Italy, a quantitative automatic water supply control system for mouthwashing, and a constant temperature system that can be automatically heated.
8. One set of strong and weak saliva suction systems, and the external dirt collection cup can be easily disassembled and washed
9. A set of adjustable luxury LED Anja oral cold light lamp

10.24V low-voltage control mouthwash device and a set of low-voltage film viewer

11. 1 set of rotatable 90-degree ceramic spittoon
12. A set of built-in mobile phone water purification system
13. One set of pneumatic locking instrument arm
14. Multifunctional combination foot switch, can control mobile phone, dental chair
15. The power system adopts a DC silent motor
16. It has the function of cleaning the filter screen and the function of sediment filtration
17. The structure of the dental chair is computer-linked. The headrest can be folded and adjusted and pinned arbitrarily. The two-stage headrest is suitable for adults and children. It is equipped with environmentally friendly microfiber leather, which is more comfortable. The dental chair has double armrests.
18. The water vapor pipeline is imported from the United States
19. The chassis can be rotated for four-handed operation, and the chassis is equipped with a tissue box
20. Technical parameters:
21. Environment 5-40, relative humidity ≤ 80%
22. Power supply: AC 220V 50HZ
23. Air source pressure: 0.5MPa—0.8 MPa flow rate is less than 50L/min
24. Water source water pressure: 0.2MPa—0.4 MPa flow rate is less than 10L/min
25. Input power: 1200VA
26. Model of fuse: RF1-20, specification: 5x20 6A
27. Oral cold light bulb: a.c.24V/7VA; Dental light: the light spot is 800mm away from the lamp surface, the illumination adjustment range is 8000Lux~26000Lux, the temperature rise of the lighting area is ≤5°C, and the oral light rotation range is ≥120
28. Film viewing lamp: illumination ≥ 6000 Lux
29. Water heater: DC24V/80VA
30. DC motor: d.c.24V/80VA
31. Range of reclining angle of backrest: 120mm
32. The maximum angle of seat back tilt: ≥10°
33. The dental chair can bear 135kg
34. The noise of the whole machine is ≤70db (A) (except air compressor)
35. The lowest chair position≦380mm, the highest chair position≧720mm
36. The handrail can withstand a vertical downward pressure of 335N and a horizontal tensile force of 220N
37. Instrument tray: the vertical movement range should be ≥350mm, and the deflection of the tray surface should be ≤3°
