Denal Intraoal X-ray 8(L-A C21)

Dental X-RAY 8(L-A C21)

Standard Configuration List:

  • Powe Adapter:Power Input:

100-240AC50HZ 1.6A
Power Output: 25.2VDC 1.7A

This flexible power input allows the device to be used globally, making it ideal for practices around the world. The efficient power output ensures consistent performance.

  • High Pressure Generator:

Output Power: 120W
Tube Voltage: 70KV
Tube current: 2.0mA
Working frequency: 70KHZ

These specifications enable the L-AC21 to deliver clear, precise X-ray images with excellent detail. The high-frequency operation ensures efficient imaging and fast exposure times, reducing patient discomfort.


Focus-skin Distance: 110mm or200mm
Exposure Time: 0.01-2.0s

This flexibility in focus-skin distance allows for more precise control of exposure, depending on the clinical needs. The wide range of exposure times offers versatility for different types of imaging.

  • X-Ray Tube:

Maximum Working Voltage: 70KV
Maximum Working Current: 24mA (CP)/12mA (half wave self-rectifying
circuit)
Maximum Filament Current: 2.9A
Filament Voltage(under maximum filament current 2.9A): 2.4-3.0V

The L-AC21’s X-ray tube is designed for stable and efficient operation, producing high-quality images while ensuring safety and longevity.


Nominal Focal Spot Value: 0.4mm
Target Surface Angle: 12°

These features contribute to sharp, focused imaging, ensuring clear radiographs with minimal distortion.


Inherent Filtration: ≥0.75mmAl

This level of filtration ensures that unnecessary low-energy radiation is absorbed, further reducing the patient’s exposure and improving image quality.

  • Battery :

Battery Capacity: 950mAh/21.09Wh
Battery Voltage: 22.2V

The built-in rechargeable battery offers long-lasting power for multiple exposures, making it a convenient option for mobile dental units or practices without a direct power source.

  • Machine Parameters:

Working Mode: Intermittent loading

This mode allows the system to operate efficiently without overheating, maintaining consistent performance over long periods of use.


Package Size: 490*280*410mm
Net Weight:1.6KG

The lightweight and compact design make the L-AC21 easy to maneuver and integrate into various dental environments, whether in fixed or mobile settings.

Featured of Denal Intraoal X-ray 8(L-A C21)

Check More Our Products

The Lavender Dental Intraoral X-Ray 8(L-A C21)

1:Power Supply & Adapter:

Power Input: 100-240V AC, 50Hz, 1.6A. Power Output: 25.2V DC, 1.7A

2: High Pressure Generator:

Output Power: 120W. Tube Voltage: 70KV. Tube Current: 2.0mA. Working Frequency: 70kHz.

3: Focus-Skin Distance & Exposure:

Focus-Skin Distance: 110mm or 200mm. Exposure Time: 0.01-2.0 seconds

4: X-Ray Tube:

Maximum Working Voltage: 70KV. Maximum Working Current: 24mA.(Continuous Pulse) / 12mA (Half-Wave Self-Rectifying Circuit). Maximum Filament Current: 2.9A. Filament Voltage: 2.4-3.0V (under max filament current).

5: Nominal Focal Spot & Target Surface Angle:

Focal Spot: 0.4mm. Target Surface Angle: 12°

6: Inherent Filtration:

≥0.75mm Al

7: Battery Specifications:

Battery Capacity: 950mAh / 21.09Wh ,Battery Voltage: 22.2V

8: Machine Parameters & Working Mode:

Working Mode: Intermittent loading

9:Size & Weight:

Package Size: 490mm x 280mm x 410mm, Net Weight: 1.6kg

The Benefits of Intraoral X-Ray 8 (L-A C21)

High-Quality Imaging:

Provides clear, detailed X-ray images, ideal for accurate diagnostics.

Portable and Compact:

Lightweight design with a built-in battery makes it perfect for mobile setups or limited space clinics.

Efficient Power Management:

Flexible power input and long-lasting battery offer convenience and reliability for busy dental practices.

Safe and Reliable:

Designed to minimize radiation exposure, ensuring patient safety without compromising on image quality.

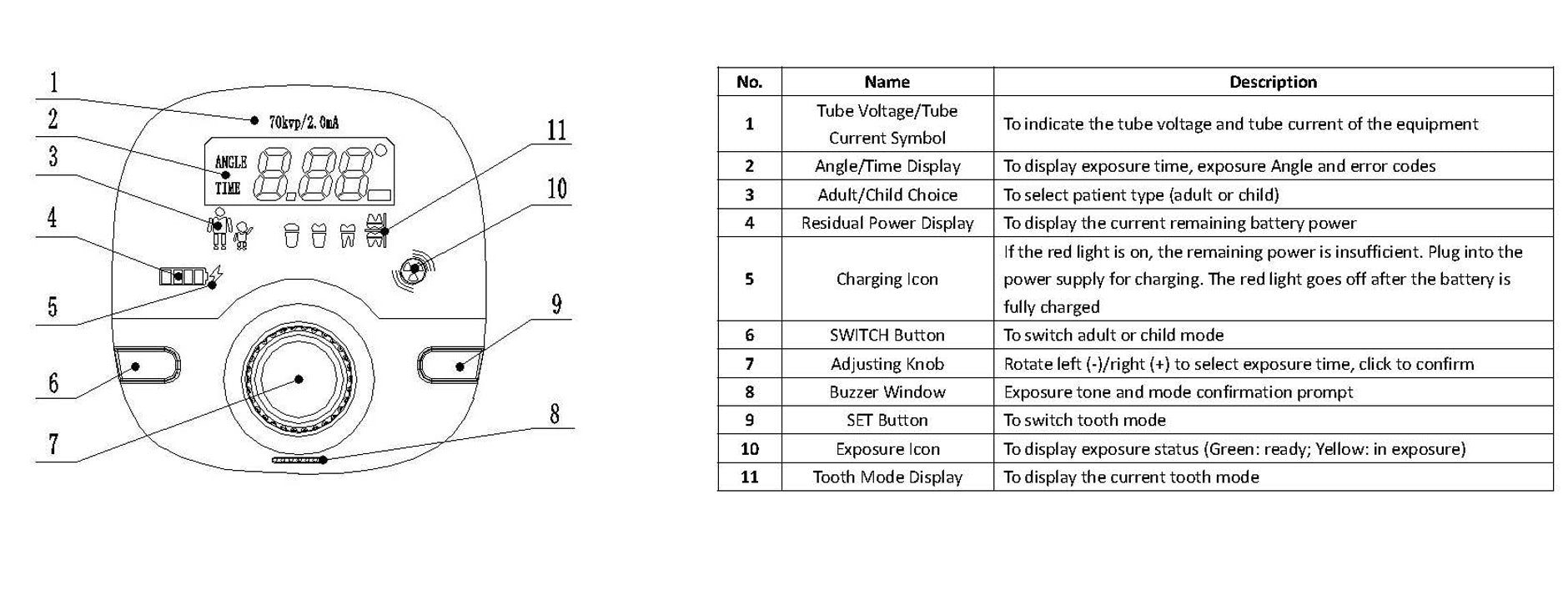

Denal Intraoal X-ray 8 (L-A C21) Control Panel Description

Denal Intraoal X-ray 8(L-A C21) Operation Guidance

Check All Our Products

Description of Denal Intraoal X-ray 8 (L-A C21)

Check More Our Products

Dental Intraoral X-ray 8 (L-A C21) Boosts Clinical Efficiency with Fast Imaging:

The L-A C21 provides high-resolution, quick exposure X-rays that reduce patient wait times and streamline your workflow. With adjustable exposure times ranging from 0.01 to 2.0 seconds, dental professionals can capture detailed images with precision in a fraction of the time, allowing for faster diagnoses and treatment planning. This improved efficiency helps your practice serve more patients while maintaining high standards of care.

Dental Intraoral X-ray 8 (L-A C21) Ensures Safety with Reduced Radiation Exposure:

Safety is a top priority in any dental practice, and the L-A C21 doesn’t disappoint. It features advanced technology that minimizes radiation exposure for both patients and dental professionals. The inherent filtration of ≥0.75mm Al and optimized tube settings ensure that only necessary radiation reaches the patient, promoting a safer, more comfortable experience. This also aligns with regulatory safety standards, giving your practice peace of mind.

Dental Intraoral X-ray 8 (L-A C21) Flexible and Compact Design for Versatility:

The compact design and lightweight structure of the L-A C21 make it easy to move and position, even in busy treatment rooms or clinics with limited space. Its adjustable arm allows for precise positioning, which helps the dental team capture the best possible images in various clinical scenarios. This versatility not only enhances patient comfort but also ensures that the device can adapt to different diagnostic needs, improving overall workflow.

Dental Intraoral X-ray 8 (L-A C21) Portable and Cost-Effective for Diverse Settings:

The L-A C21 is designed with a built-in rechargeable battery, allowing for mobility and flexibility across different treatment rooms or even mobile dental units. This portability means that dental teams can easily bring the X-ray system to the patient rather than the other way around. Additionally, the long battery life reduces downtime, making the L-A C21 a cost-effective choice for practices looking to maximize their imaging capabilities without compromising on performance or convenience.

Customer FeedBack Highlight of the L-AC21’s Features.

Check Our All Products

Dr. Sarah Williams, Family Dentist:

"The L-A C21 has been a fantastic addition to our practice. The image quality is exceptional, providing us with clear and detailed radiographs for accurate diagnosis. The compact design is perfect for our smaller treatment rooms, and the rechargeable battery allows us to easily move the unit around for various patient setups without worrying about plugging it in constantly. It’s reliable, easy to use, and has definitely improved our workflow. Patients appreciate the quick exposure times and reduced radiation exposure too."

Dr. Michael Thompson, Orthodontist:

"We’ve been using the L-A C21 for a few months, and it has surpassed our expectations. The machine is lightweight and portable, which is a huge benefit when treating patients in different positions. I also love the flexibility in exposure time—whether we need a quick snapshot or a longer, more detailed exposure, this system handles it seamlessly. The image clarity is spot on, and the reduced radiation exposure makes both our team and patients feel safer. It’s a great investment for any practice looking to enhance their imaging capabilities."

What Sets Lavender Dental Apart

Lavender Dental is a trusted name in the dental industry, renowned for providing high-quality, reliable dental equipment to professionals worldwide. Our brand stands out for its commitment to excellence, innovative solutions, and dedication to customer satisfaction. Whether you're outfitting a new dental practice or upgrading your existing equipment, Lavender Dental is your go-to partner for superior products and unmatched expertise.
