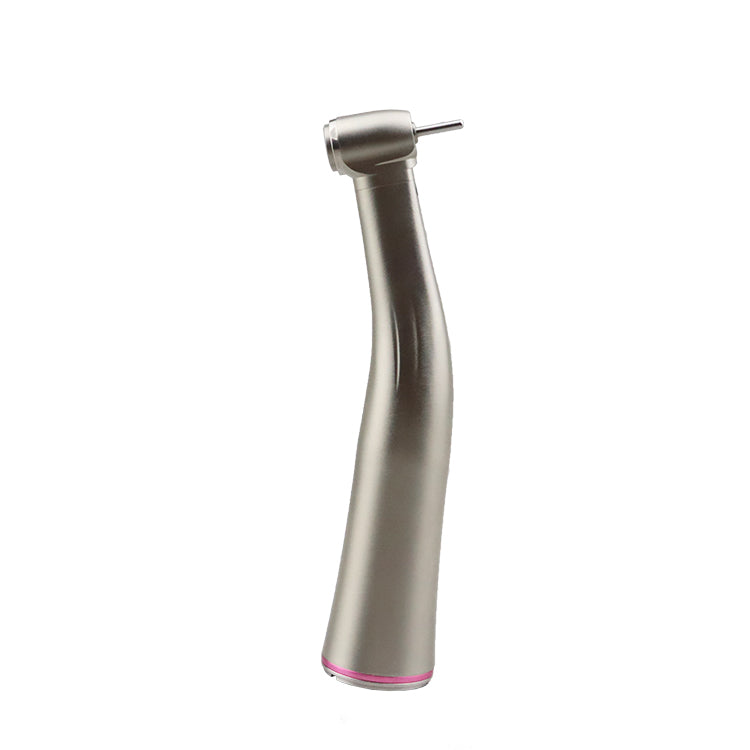

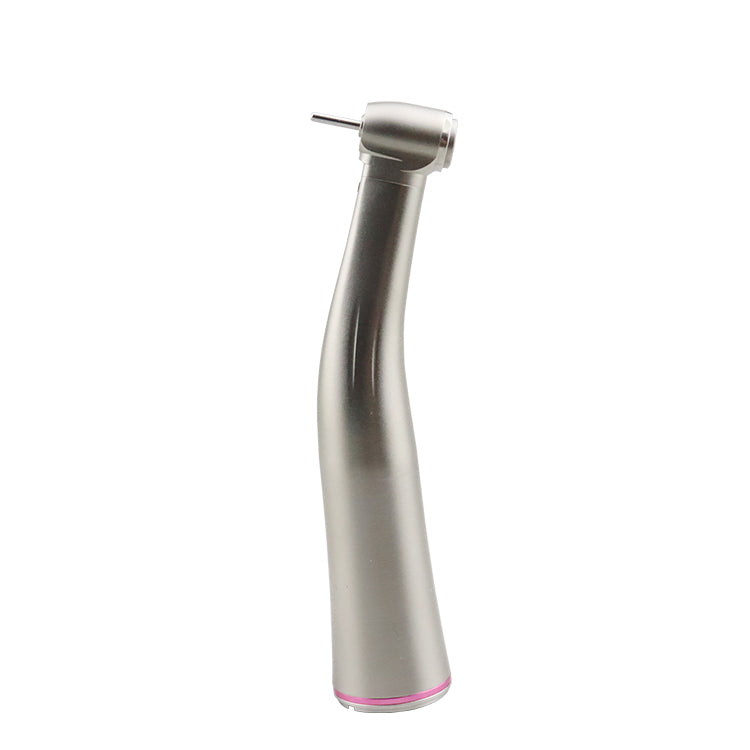

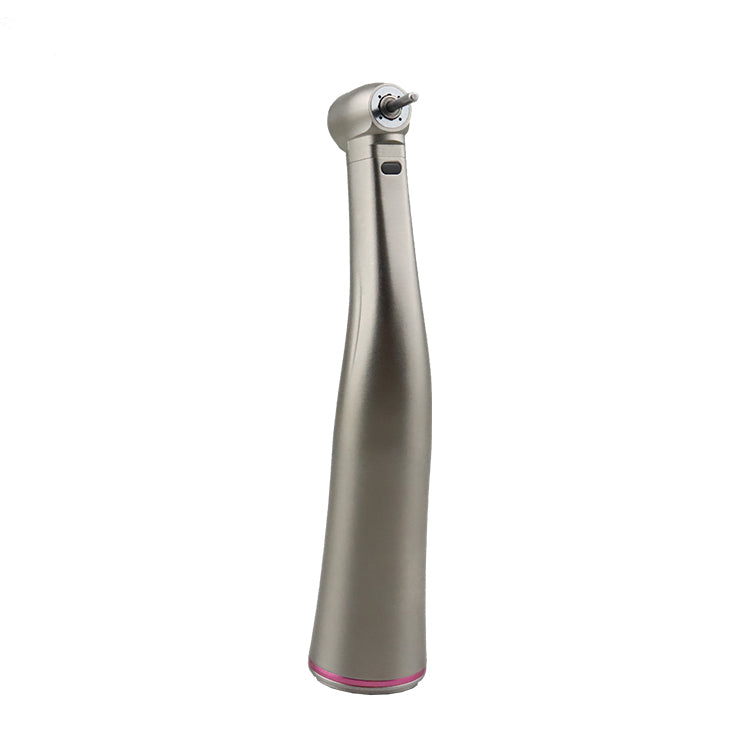

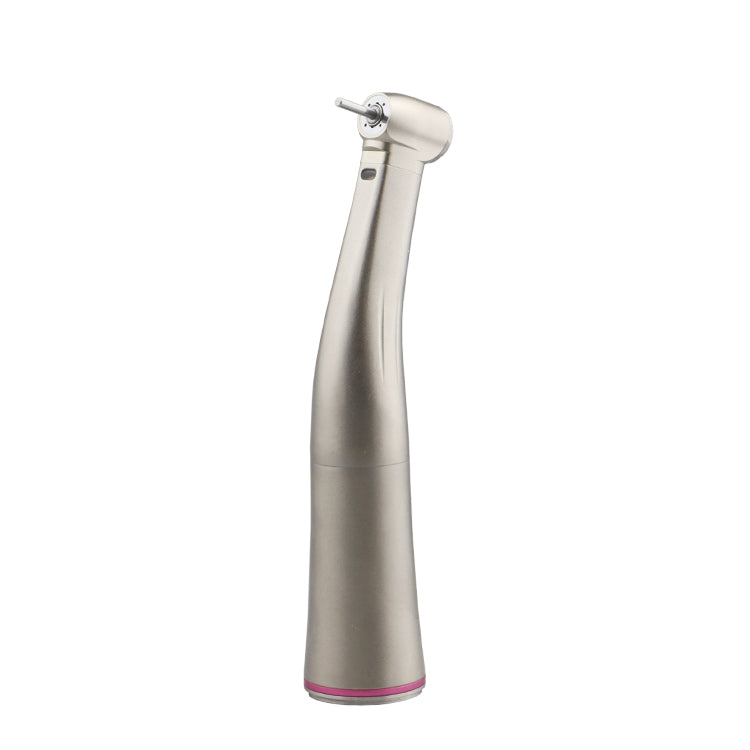

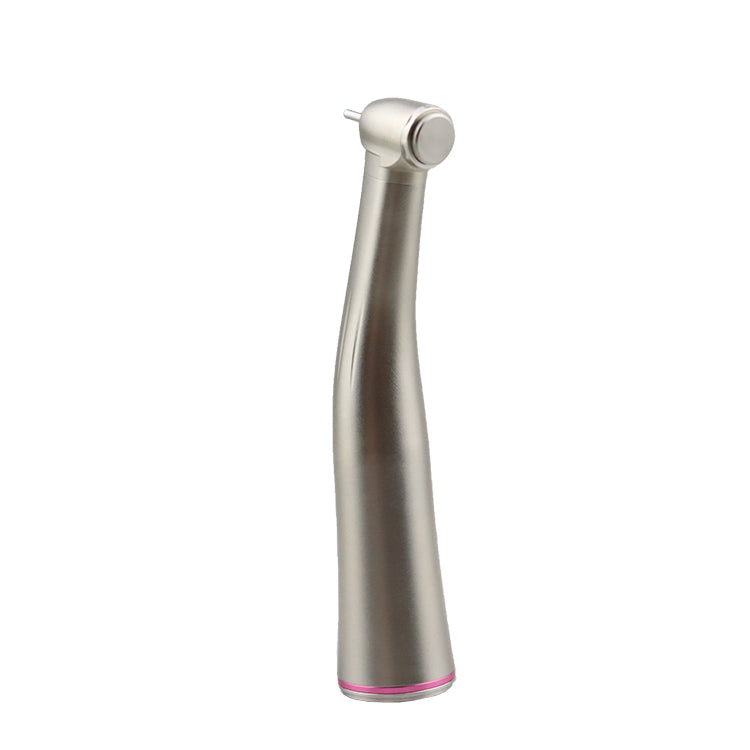

Denntal Implant 1:5 Contra HandPiece L-A 120010 LED(Optical Fiber)

Standard Configuration

Dental Implant Contra Angle 1:5 Optical Fiber Handpiece L-A120010

Function:

Precision Design: This high-performance handpiece is designed for implant procedures, providing excellent control and stability during complex dental treatments.

Durable Construction: Made from stainless steel, ensuring high durability, corrosion resistance, and long-lasting performance.

Compatible with Low-Pressure Electric Motors: Optimized for use with low-pressure electric motors, offering stable operation for dental procedures.

Ergonomic and Safe: Precision workmanship and a secure feel, ensuring the handpiece is comfortable and safe to handle during use.

Technical Specifications:

Transmission Ratio: 1:5

Working Air Pressure: 0.3 MPa – 0.35 MPa

Noise Level: ≤60 dB

Speed: 200,000 RPM

Material: Stainless steel construction, acid-resistant, and corrosion-resistant.

Water Outlet Welding: The head and motor water outlet are welded for enhanced durability and no risk of detachment.

Unique Spring Mechanism: Stainless steel press-back cap with spring-back force for secure attachment.

Imported Quality: Imported-grade quality assurance for reliable performance.

Featured Highlights Of Dental Implant 1:5 Contra Angle Handpiece L-A 120010 LED (Optical Fiber)

Check Our All Products

Effortless Bur Replacement & Cooling System

The press-back bur system ensures fast and secure bur changes without the risk of flying burs. Equipped with a 4-point water spray system, it ensures complete cooling and prevents overheating, enhancing the grinding efficiency.

Versatile Applications for Comprehensive Dental Procedures

Ideal for crown drilling, bone removal, cavity preparation, necrotic tissue cutting, and filling removal, this handpiece provides high performance in a wide range of dental treatments, offering precision and stability.

Anti-Suction System for Hygiene and Safety

The anti-suction structure ensures a clean and sterile working environment by preventing backflow, ensuring patient safety and optimal hygiene during every procedure.

Advanced LED Lighting & Fiber-Optic Illumination

Equipped with an LED light source and optical fiber technology, this handpiece provides clear, bright illumination for improved visibility, ensuring precision and accuracy during dental procedures. The international standard interface ensures compatibility with most semiconductor laser medical equipment.

Low Noise & High-Speed Performance

Operating at a speed of 200,000 RPM and ≤65 dB noise, the handpiece delivers powerful torque with minimal noise, making it quieter than the international standard (≤70 dB) while maintaining optimal performance.

Universal Compatibility with Electric and Pneumatic Motors

Designed with an E-type interface, this handpiece is compatible with both pneumatic and electric motors, making it versatile and adaptable to various dental unit setups for convenience and flexibility.

Dental Implant 1:5 Contra Angle Handpiece L-A 120010 LED (Optical Fiber) Installation And Use Methods

Check Our All Products

一、Install and remove the bur/drill

1. Installation (Figure 1)

Press the back cover, insert the bur into the head, gently turn the bur, push it to the bottom after anastomosis, release it until the end, and lock the bur.

2. Removal (Figure 2)

The pin can be removed by pressing down on the back cover with your thumb

二、Connect/unplug the handpiece

1、Connect

Push the handle onto the motor, keep it aligned, and twist the handpiece until you hear a click and lock it in place.(Figure 3)

2.Remove

Hold the motor and the phone respectively and pull it out directly.

Attention:

Do not install or remove the phone until the motor has completely stopped running.

Connect only motors (ISO3964) with a maximum speed of less than 40,000 RPM in the E-head.

Only connect the motor with the stop pin.

The connectors of this product comply with ISO3964 standard.

Dental Implant Contra Angle 1:5 Handpiece L-A 120010 Product Maintenance And Maintenance Methods

Check Our All Products

1、Clean

After each use of the handpiece, remove the bur from the handpiece, use a brush to sweep debris in and around the outlet, and rinse the handpiece under running water to remove surface contaminants.

Re-lubricate the handpiece after high temperature sterilization,If the handpiece head can be rotated, please turn the head, and then blow the inside of the head with air to blow out the internal dirt of the head.

2. Lubrication (Figure 4)

The injector should be used with the E-nozzle. Align the nozzle into the handpiece and spray for 2-3 seconds.

If the nose is dirty, remove the back cover with a wrench and spray the nose in the front.(Figure 5)

If the operation is continuous, please fill the oil every 30 minutes.

Repeat the lubrication until the phone is completely clean and free of debris.

Note: The handpiece must pay attention to timely cleaning, otherwise it will affect the performance of the handpiece

3、Disinfect

High temperature sterilization should be carried out before the first use: sterilization temperature is 135C.

At the end of each use, high temperature and high pressure disinfection must be carried out as follows:

1. Remove the bur from the handpiece, then brush the dirt on the handpiece with a soft brush, and then wipe it with a disinfectant alcohol cotton ball.

2. Lubricate the handpiece.

3. Use a sterilized bag and mark it.

4. High temperature sterilization: sterilization temperature is 135C.

Attention:

Please do not wash, soak or inject the phone in a way that will cause oxidation (strong acid, super acid solufon) or sterile solution

Please do not autoclave equipment with chemical residues, which may cause the hand-piece's gold-plated skin to peel off or have harmful effects on internal parts.

Store your handpiece in a place where there is no dust, sulfur or salt in the air.

Do not contact the handpiece immediately after high temperature and high pressure disinfection, at this time the handpiece is very hot.
